Technical parameters:

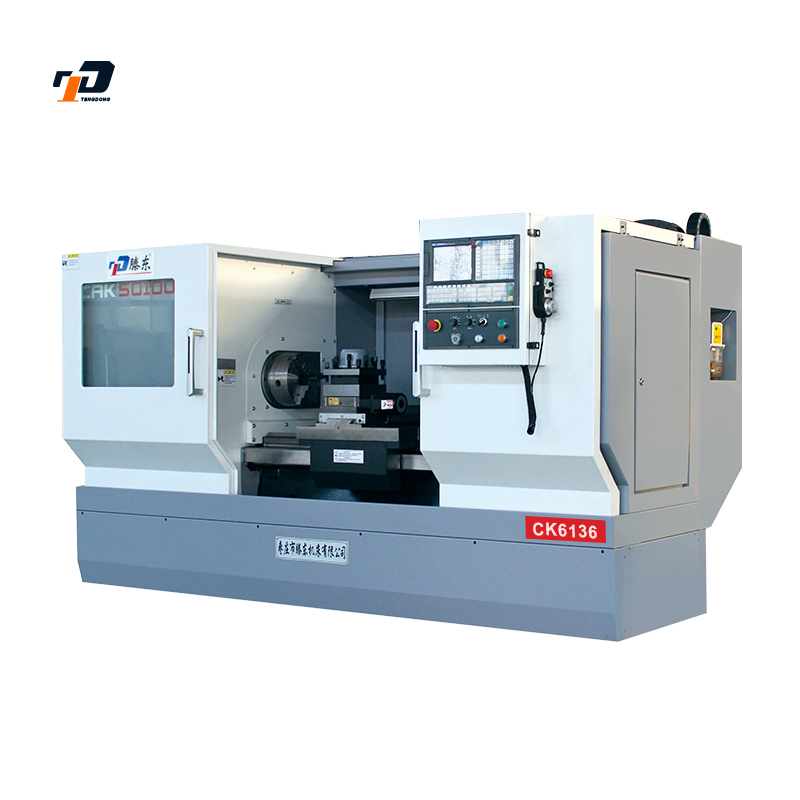

| project | CK6136 |
| Maximum turning diameter of the bed | φ360 |
| Maximum rotation diameter of the drag disk | φ180 |
| Maximum working length | 750/1000/1500 |
| Maximum travel x/z | X: 240Z: 750/1000/1500 |
| Main drive form | Nothing |
| Spindle speed series | No basis |
| Spindle speed range | 50-2000 |
| Spindle end form | A2-6 |
| Helical diameter | 52 |
| Taper at the front end of the spindle | MT5 |
| Spindle motor power | 5.5 |
| Chuck's size | 200 |
| Ball screw specifications | 2006/4008 |
| Feed motor torque X/Z | 4/6 |
| Fast speed x/z | X: 6Z: 8 |
| Repeat positioning | ±0.005 |
| Accuracy (X/Z) | |
| Workpiece machining accuracy | IT6-IT7 |
| Workpiece surface roughness | Ral.6 |
| Tail seat sleeve diameter | 60 |
| Tail sleeves | 130 |
| Taper of tapered sleeve | MT4 |
| Tool rest form | Electric station four |
| Tool Dimension | 20×20 |
| Guidelines | Single + tablet |
| Total power capacity | 10 |
| Overall dimension | 2150/2400/2900×1500×1650 |
| Machine weight (approximately) | 1800 |
