Technical parameters:

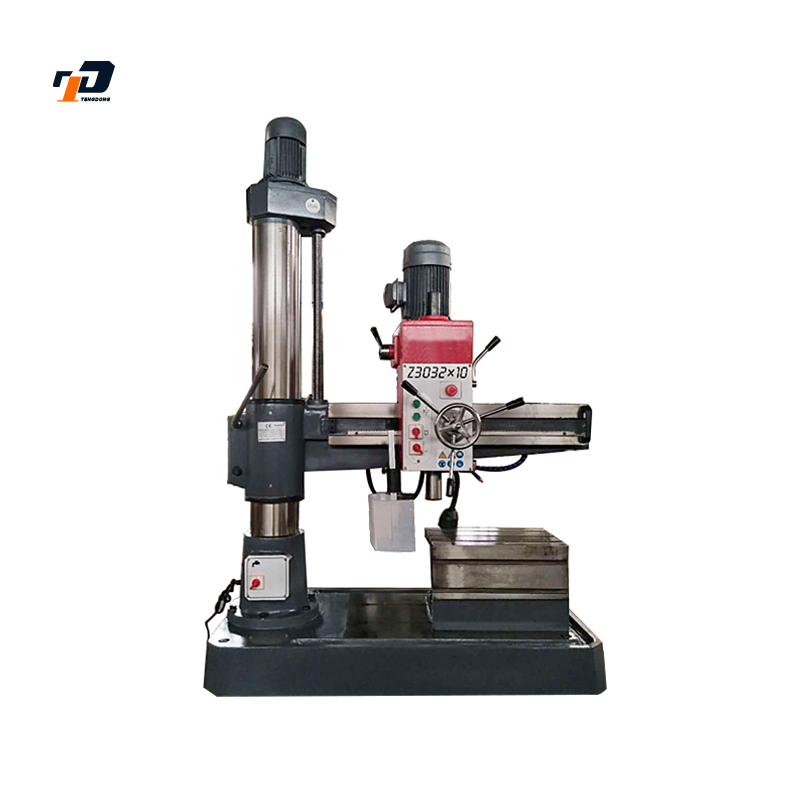

| model | unit | Z3032×10 |
| Large drilling diameter | mm | Steel parts Φ32 castings Φ32 |
| tensile strength | Mpa | 500-600 |
| Column diameter | mm | 200 |
| Distance of the main shaft center line to the column bus line | mm | 200-910 |
| Horizontal movement distance of the spindle box | mm | 710 |
| Distance between the spindle end face and the base working face | mm | 330-1060 |
| Rocker lift distance | mm | 730 |
| Spindle stroke | mm | 120 |
| Spindle conical hole | Mohs No. 4 | |
| Spindle speed (level 6 | r/min | 108 162 262 398 665 1000 |
| Spindle feed (level 3 | mm/r | 0.10 0.16 0.25 |
| The spindle allows for large feed resistance | N | 5300 |
| Rocker lifting speed | m/min | 1.21 |
| Rocker rotation angle | (° | + 180 |
| Main motor power | KW | 1.5/2.2 |
| Lifting motor power | KW | 0.55 |
| Cooling pump motor power | KW | 0.04 |
| Net weight of the machine tool | kg | 800 |
| Machine tool size (length x width x height | mm | 1400×660×2060 |
| Outer packaging size | mm | 1650x800x2350 |
