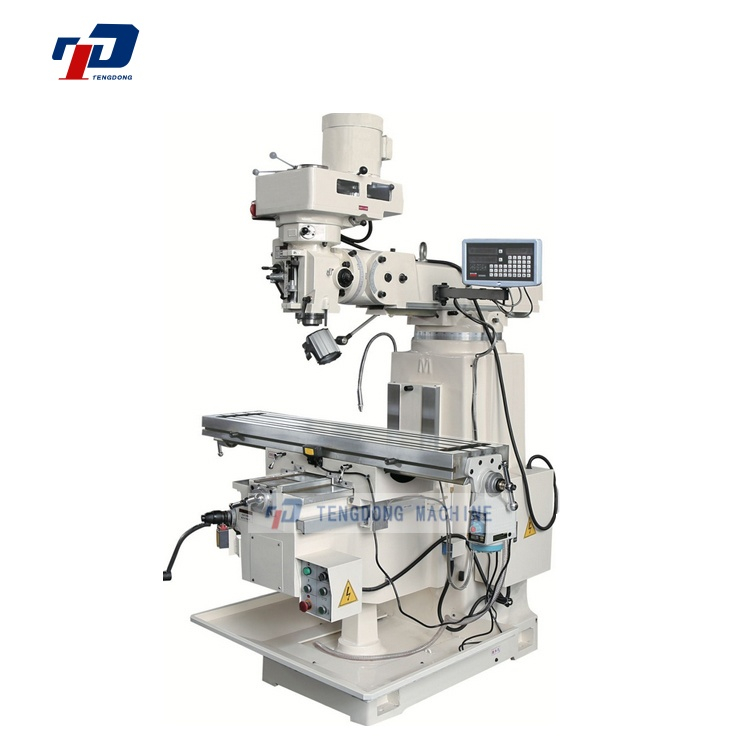

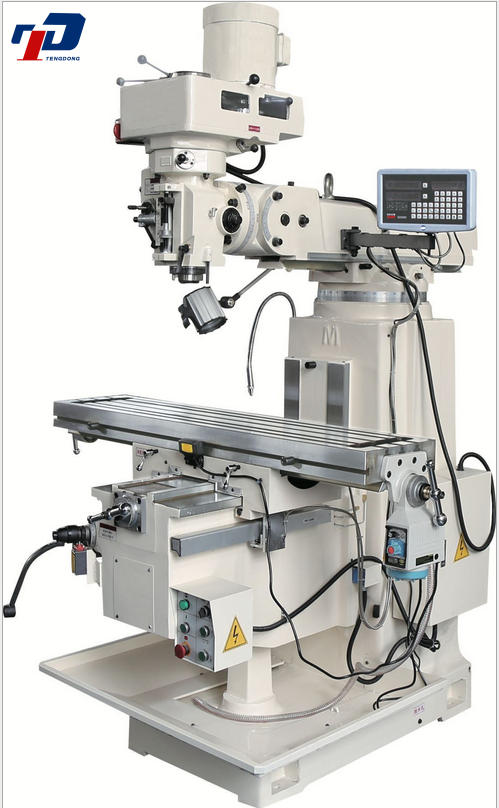

5H vertical turret milling machine

  • 5H

  • Teng dong

SKU:
Availability:
Inquire

PDF Export
linkedin sharing button
line sharing button
facebook sharing button
pinterest sharing button
twitter sharing button
telegram sharing button
whatsapp sharing button
wechat sharing button
sharethis sharing button
Previous:
Next:
Product Description


Workbench size
unit1370*254
T-slotmm3*16
X/Y/Z axis stroke  mm810/420/500
Distance from spindle to workbench  mm480
Spindle taper
ISO40
Spindle speed

Level 16

50HZ: 66-4540; 60HZ: 80-5440

Late: Level 12

45-1350

Spindle strokemm127
Spindle feedmm/r0.04/0.08/0.15
Spindle motor powerkw/HP3.75/5
Rotation angle°

Left and right: 90°

Front and back: 45°

Packaging size (length*width*height)mm1566*1650*2080
weight
kg1700


Product Description
