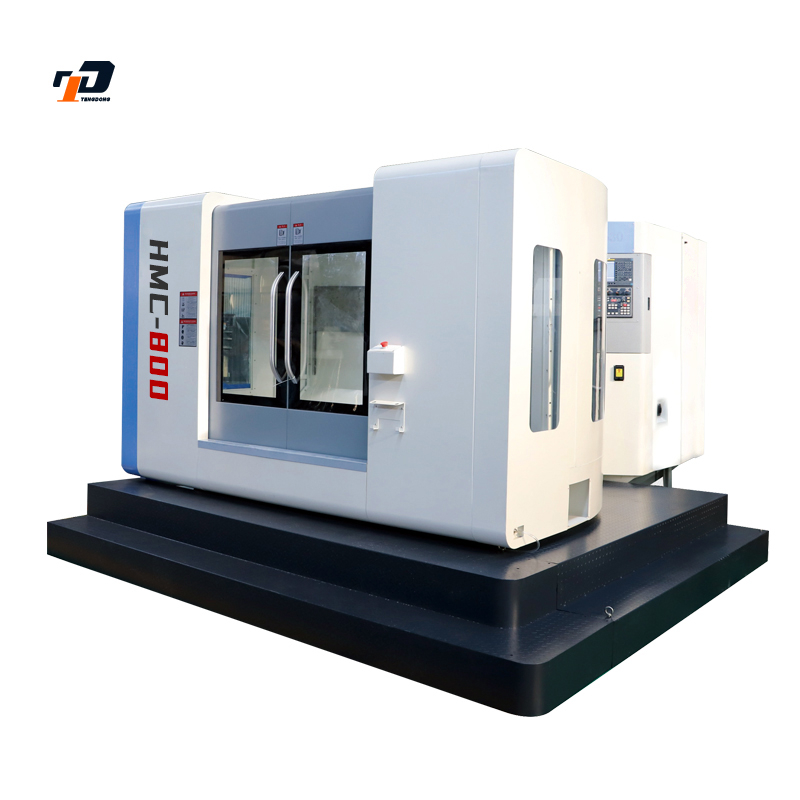

| Project | unit | HMC800 |
| Work surface size (length X width) | mm | 800X800 |
| Work table left and right stroke (X axis) | mm | 1300 |
| Worktable front and rear stroke (Z axis) | mm | 900 |
| Headstock up and down stroke (Y axis) | mm | 900 |
| Spindle end to table center distance | mm | 180~1080 |
| Spindle end center to work surface distance | mm | 100~1000
0~900 |
| Spindle taper dimension number | mm | ISO50 |
| Spindle speed range |
| 20~6000 |
| Fast moving speed (X, Y, Z) | rpm | 24 |
| Turntable maximum speed | m/min | 10 |
| Positioning accuracy of linear motion coordinates | mm | 0.012 |
| Repeated positioning accuracy of linear motion coordinates | mm | 0.008 |
| Tool magazine capacity | 把 | 40 |
| Tool change time |
| 5.5 |
| Tool weight | kg | 25 |
| Maximum diameter of the tool | mm | 125 |
| Maximum length of tool | mm | 350 |
| main motor power | kw | 18/25 |
| Spindle maximum torque | N.m | 141 |
| Machine size (length X width X height) | cm | 500X370X395 |
