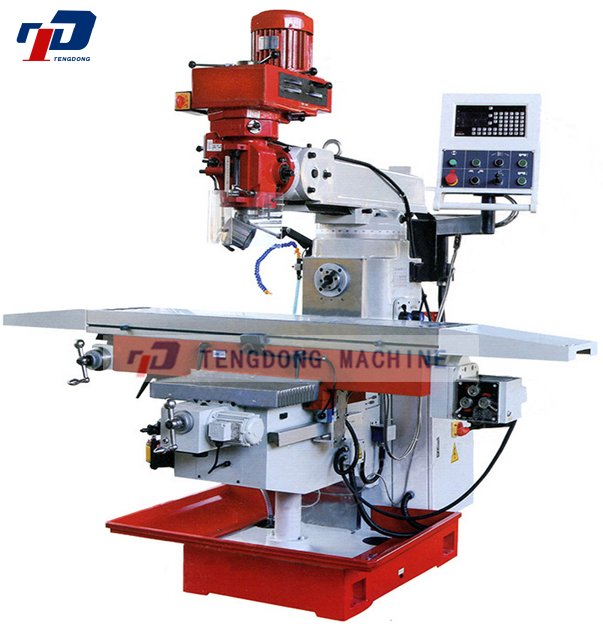

High Precision X6330 Turret Milling Machine Turret Milling Machine Variable Speed Turret Milling Machine

  • X6330

  • Teng dong

SKU:
Availability:
Inquire

PDF Export
linkedin sharing button
line sharing button
facebook sharing button
pinterest sharing button
twitter sharing button
telegram sharing button
whatsapp sharing button
wechat sharing button
sharethis sharing button
Previous:
Next:
Product Description


SpecificationsUnitX6330
Table sizemm1370*254
T-slot(No/Width/Pitch)
mm3/16/65
Table travel(X/Y/Z)mm800*400*400
Telescopic arm strokemm460
Distance between spindle nose and table surfacemm0-405
Spindle speed rangerpm

Vertical:16(shift grade)

50HZ:66-4540  /60HZ80-540

Horizontal:12(shift grade)

45-1350

Main motor powerHP3
Spindle hole taper/ISO40
Feed of spindle sleevemm/r0.04/0.08/0.15
Travel of spindle sleevemm127
Arm travelmm400
Milling head rotation
Front-back 45°,Right-left 90°
Packaging size(L*W*H)mm1700*1500*2200
Weight
kg1600
