Technical parameters:

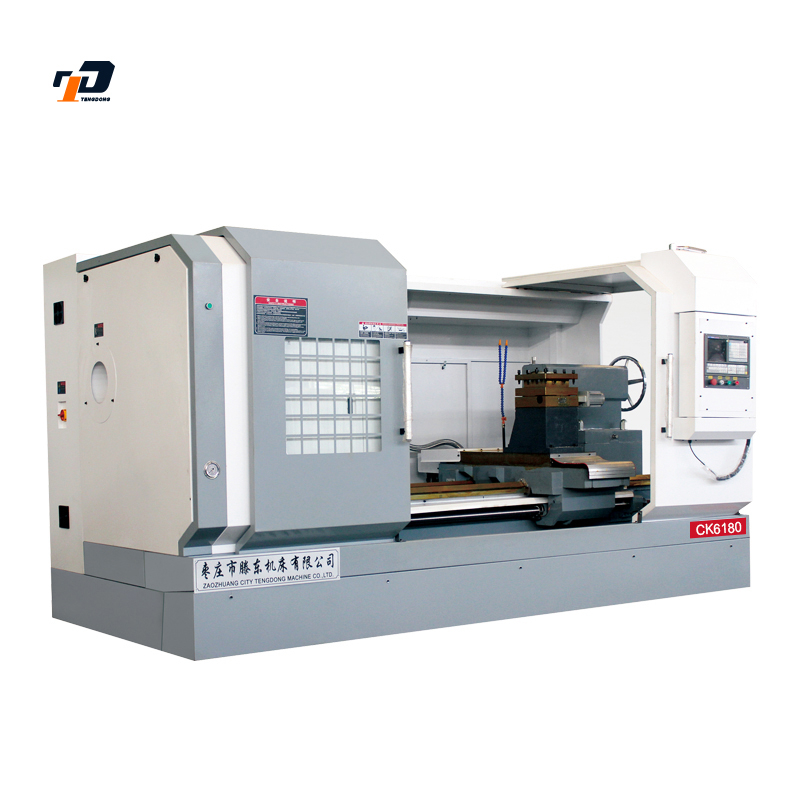

| project | CK6180 |
| Maximum turning diameter of the bed | φ800 |
| Maximum steering diameter on the plate | φ450 |
| Maximum working length | 1000/1500/2000/3000 |
| Spindle drive form | Four gears |
| Spindle speed series | No steps gears |
| Spindle speed | 30-84/53-150/125-350/300-835 |
| Spindle head form | D11 |
| Taper at the front end of the spindle | Metric 1201:20 |
| Helical diameter | 105 |
| Main motor power | 11 |
| X/Z axis positioning accuracy | 0.025/0.03 |
| X/Z axis repeat positioning accuracy | 0.01/0.015 |
| Workpiece machining accuracy | IT6-IT7 |
| Workpiece surface roughness | RA1.6 |
| x Fast movement speed | 4000 |
| z Fast speed | 6000 |
| Tail seat sleeve diameter | 100 |
| Taper of inner hole of tail rod sleeve | MT6 |
| Movement of tail rod sleeve | 250 |
| Tool rest form | Electric vertical four-station tool rest |
| Ball screw diameter*pitch | X: 30*06 Z: 50*10 |
| Cutter size | 32/32 |
| Machine profile size | 3500/4000/4500/5500*1900*1900 |
| Machine weight | 4200/4500/5200/6200 |
