Technical parameters:

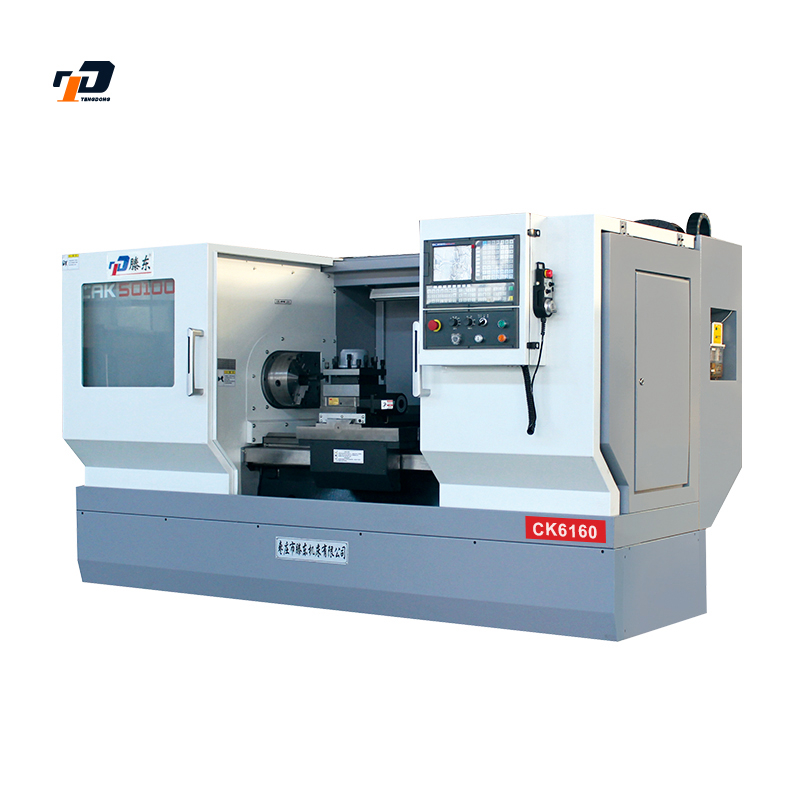

| project | CK6160 |
| Maximum turning diameter of the bed | φ600 |
| Maximum rotation diameter of the drag plate | φ320 |
| Maximum working length | 750/1000/1500/2000 |
| Maximum travel x/z | X: 300Z: 750/1000/1500/2000 |
| Main drive form | Three-speed gear shift |
| Spindle speed series | No basis |
| Spindle speed range | 50-500/300-1100/600-1800 |
| Spindle end form | A2-8 |
| Helical diameter | 82/105/130 |
| Taper at the front end of the spindle | MT6 |
| Spindle motor power | 7.5/11 |
| Chuck's size | 250/320 |
| Ball screw specifications | 2506/4008 |
| Feed motor torque X/Z | 5.5/7.5 |
| Fast speed x/z | X: 6Z: 8 |
| Repeat positioning | ±0.005 |
| Accuracy (X/Z) | |
| Workpiece machining accuracy | IT6-IT7 |
| Workpiece surface roughness | Ral.6 |
| Tail seat sleeve diameter | 65 |
| Tail sleeves | 140 |
| Taper of tapered sleeve | MT5 |
| Tool rest form | Electric station four |
| Tool Dimension | 25×25 |
| Guidelines | Single + tablet |
| Total power capacity | 12 |
| Overall dimension | 2950×3610×1820 |
| Machine weight (approximately) | 3150 |
