project
| unit

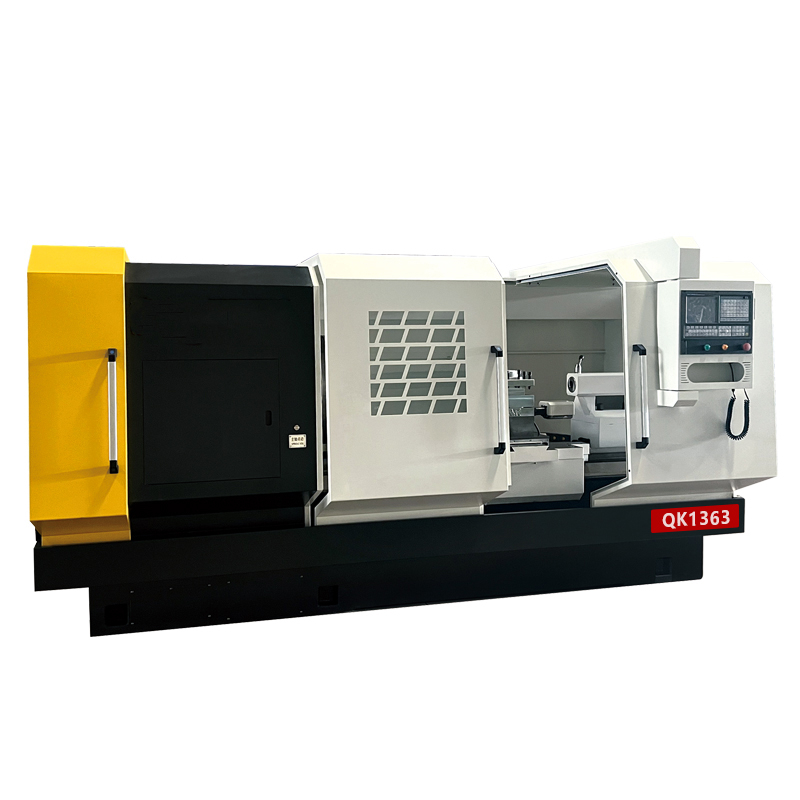

| QK1363 |
Large slewing diameter of bed
| mm | 1400 |
Large swing diameter on the knife holder
| mm | 1000 |
Large top-level
| mm | 1500/2000/3000 |
Bed width
| mm | 755 |
Spindle hole diameter
| mm | 640 |
Main motor power
| Kw | 37 |
Spindle speed change
|
| Two-speed frequency conversion, no-pole speed conversion in the gear
|
Spindle speed range
| r/min | Low-end (L): 2-90
High-end (H): 65-120 |
Large stroke of X/Z axis
| mm | X:670
Z:1250/1750/2750 |
Fast movement speed of X/Z axis
| mm/min | 4000 |
X-axis motor
| Speed
| r/min | 1500 |
Torque
| Nm | 18 |
power
| Kw | 2.8 |
Z-axis motor
| Speed
| r/min | 1500 |
Torque
| Nm | 22 |
power
| Kw | 3.5 |
Tail seat sleeve
| diameter
| mm | 140 |
journey
| mm | 300 |
Taper
|
| MorseNO.6 |
model
|
| HAK21300 |
Electric knife holder
| form
|
| Vertical four
-station |
size
| mm | 300×300 |
Time for changing tools
| S | 4.1 |
Chuck
|
| K72-1200 Four claw chuck
K72-1400 four jaw chuck |
Positioning accuracy
| mm | 0.020 |
Repeat positioning accuracy
| mm | 0.01 |
Machine tool size (length*width*height)
| mm | 5300/5800/6800×2800×2800 |
Net weight of the machine tool
| T | 14/15/16.5 |
