The main uses of gantry machining centers

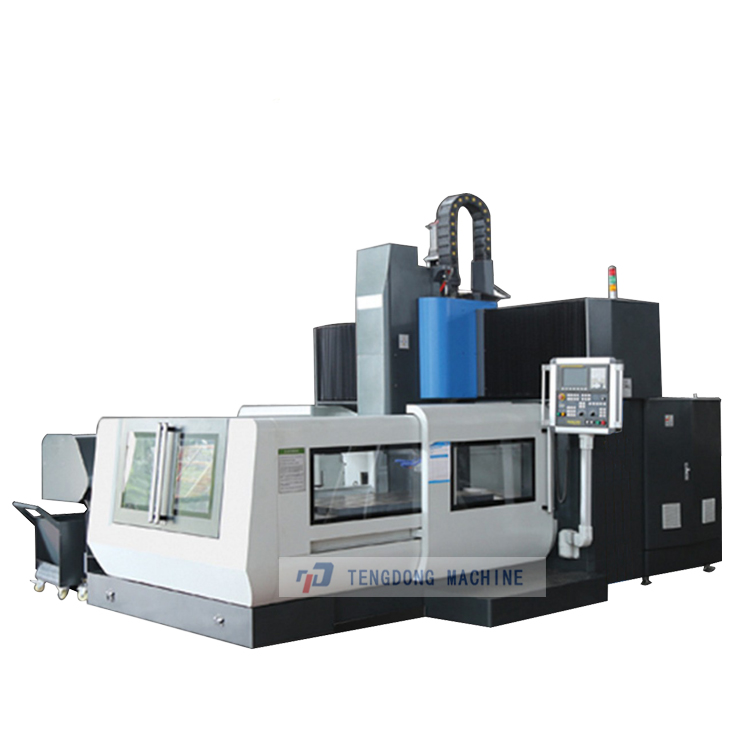

The gantry machining center is a high-rigidity and long-stroke CNC machine tool, widely used in industrial fields for high-precision processing of large and complex workpieces. With its powerful structural stability, multi-axis linkage capability and wide material adaptability, it has become an indispensable core equipment in high-end manufacturing.

I. Main Application Industries and Typical Scenarios

Aerospace and defense industry ‌

Gantry machining centers play a crucial role in the manufacturing of large aircraft structural components (such as wing beams and fuselage frames), rocket fuel tanks, and parts made of difficult-to-machine materials like titanium alloys and high-strength aluminum alloys. Its high rigidity can withstand large cutting forces, ensuring the dimensional accuracy and reliability of key components.

Energy equipment industry ‌

In fields such as wind power, hydropower, and nuclear power, it is necessary to process super-large and super-heavy components, such as wind power flanges, hubs, and turbine blades. The gantry machining center is equipped with heavy-duty cutting capabilities and high-precision control. It can achieve integrated processing, avoid the accumulation of errors caused by segmented installation, and improve the assembly fit.

Ships and rail transit ‌

Large structural components such as Marine diesel engine bases, steering gear brackets, high-speed rail bogie frames, and metro car molds are large in size and heavy in weight, and have extremely high requirements for processing stroke and stability. The large stroke coverage and heavy cutting capacity of the gantry machining center meet the efficiency and precision requirements in batch construction.

Mold manufacturing ‌

It can efficiently complete the processing tasks of complex surfaces such as casting molds, die-casting molds, and injection molds. Its multi-axis linkage function supports curved surface precision milling, ensuring the surface quality and forming accuracy of the mold.

Automobile and new energy vehicle manufacturing ‌

It is used for processing components such as engine blocks, large body structural parts, and battery trays for new energy vehicles. Some equipment supports dual-spindle configuration, significantly enhancing production efficiency.

Construction machinery and heavy machinery ‌

It is suitable for processing heavy mechanical parts, large transmission cases, structural components of mining equipment, etc., and is applicable to heavy-duty cutting of high-strength alloys and thick-walled castings.

Ⅱ. Characteristics of Core Processing Capabilities

Processing of large-sized workpieces ‌ : The X-axis travel can reach tens of meters, making it suitable for processing large workpieces in the length direction.

High precision and consistency ‌ : Utilizing a high-precision CNC system, the positioning accuracy can reach the ±0.008mm level, ensuring the dimensional, shape and positional accuracy of the parts.

Multi-axis linkage processing ‌ : Supports three-axis to five-axis linkage. Combined with a rotating accessory head, it can flexibly handle complex curved surfaces and inclined hole processing.

Integration of multiple processing techniques ‌ : It can complete various operations such as milling, drilling, boring, and cutting, achieving centralized processing of multiple procedures and reducing the number of clamping operations.

Automation and intelligence integration ‌ : It can be linked with the automatic loading and unloading system and the tool management system, integrated into the intelligent production line, and improve the overall manufacturing efficiency.
