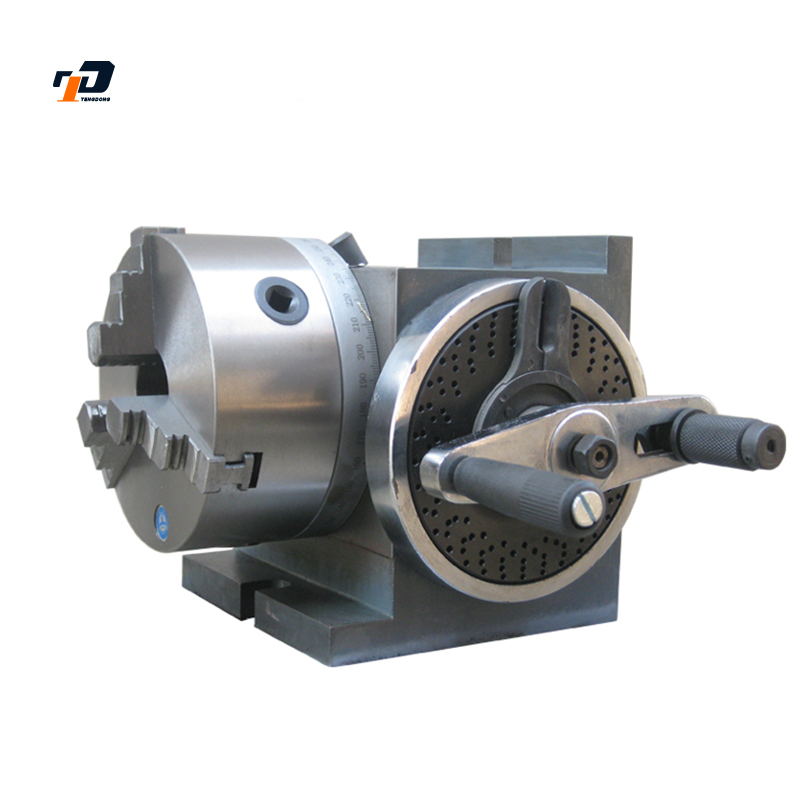

Stand and lying division head

Center height

125mm

160mm

Horizontal and vertical positions of the spindle

90°

90°

Indexing hand rim rotation angle

9°

9°

Finality of indexing

40

40

Spindle hole taper

Mohs No. 5

Moh's No. 6

Spindle inner hole

Φ40

Φ58

Positioning key width

18mm

18mm

Rotary diameter

Φ200mm

Φ280mm

Configure the chuck

Φ160mm

Φ200mm

Base to chuck height

255

290mm

weight

52 kg

75 kg

Number of holes in the indexing plate

The first front

2425283034

 The opposite

373839414243

The second front

464749515354

   The opposite

5758596266
