Technical parameters:

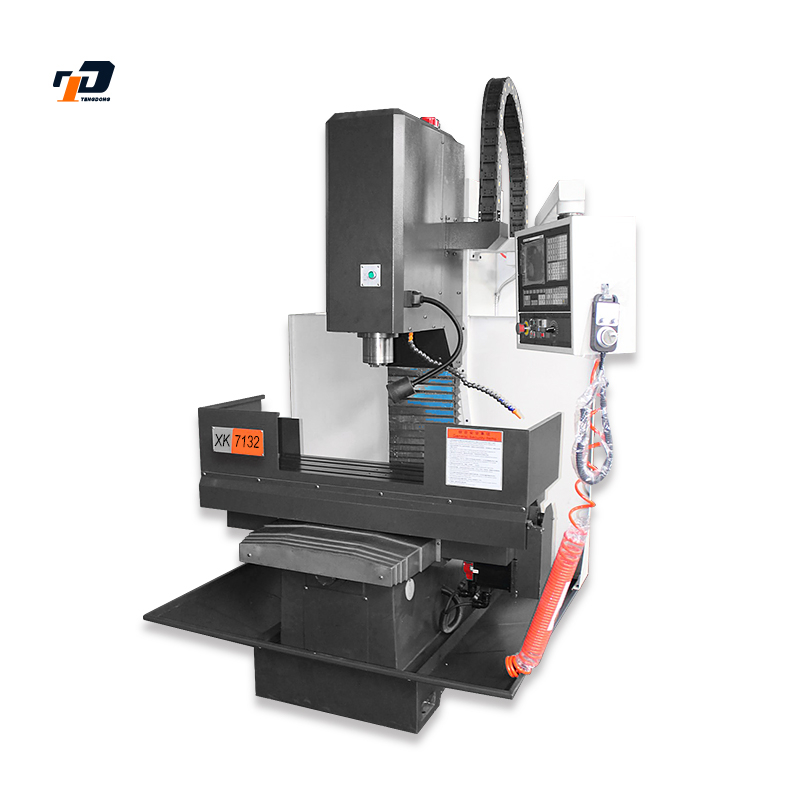

| model | unit | XK7132 |
| X-axis travel | mm | 900 |
| Y-axis travel | mm | 400 |
| Z-axis travel | mm | 500 |
| Distance from spindle to work surface | mm | 100-580 |
| Distance from the center of the spindle to the column guide | mm | 400 |
| Rapid exercise (X/Y/Z) | mm/min | 12000/12000/10000 |
| Cutting feed rate | mm/min | 1-4000 |
| Working size | mm | 1500x320 |
| Maximum load | Kilogram | 500 |
| Number/width/spacing of T-Slots | 3/14/70 | |
| Maximum spindle speed | r/min | 66-4540 |
| Spindle motor power | KW | 3.7 |
| Spindle nose cone | NT40 | |
| Air pressure used | MPA | 0.6 |
| Net weight of the machine tool | Kilogram | 2200 |
| Overall dimension | mm | 2100x1900x2350 |
