English PARAMETER:

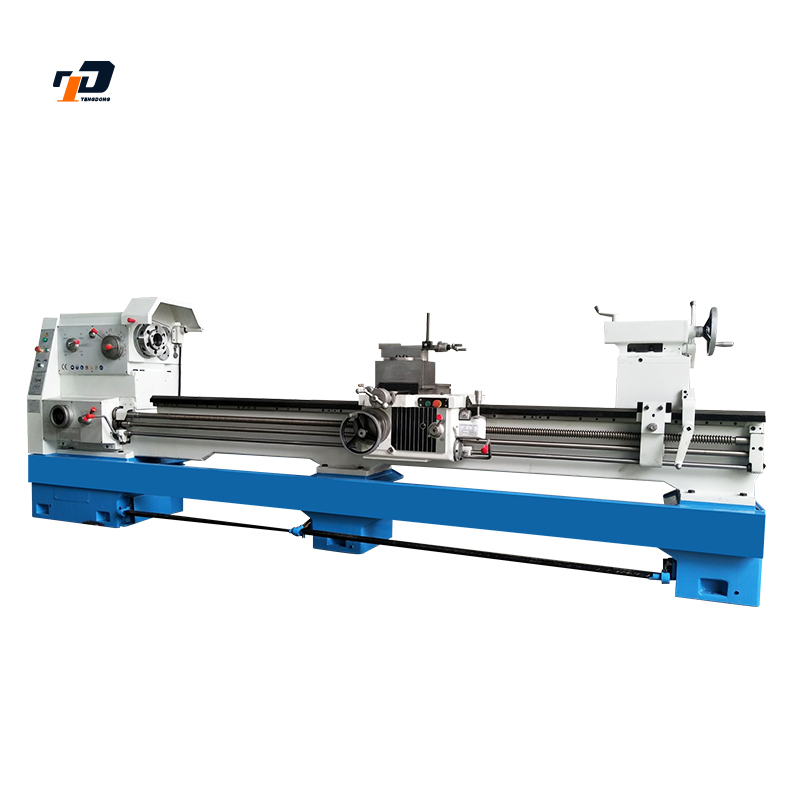

 Specifications | CA6180B CA6180C | CA6280B CA6280C | |
| Max.Swing over bed | 800mm | ||
| Max.Swing over carriage | 540mm | ||
| Max.Swing in gap | - | 1020mm | |
| Effective gap length | - | 210mm | |
| Max.Length of work piece | 750/1000/1500/2000/2200/3000/4000mm | ||
| Width of bed | 400mm | ||
| Section of turning tool | 25*25mm | ||
| Spindle | Spindle speeds | 10-1400rpm/16-1400rpm (24 steps) | |
| Hole through spindle | 80mm 105mm | ||
| Spindle taper | Φ90 1:20 Φ113 1:20 | ||
| Feed | Number of feeds | 64 kinds (for each) | |
| Range of metric threads(kinds) | (1-192mm) 44 kinds | ||
| Range of inch threads(kinds) | (2-24 tpi) 21 kinds | ||
| Range of module threads(kinds) | 0.25-48 (Moduie 39 kinds) | ||
| Range of pitch threads(kinds) | (1-96DP) 37 kinds | ||
| Tailstock | Max.Tail stock spindle travel | 150mm | |
| Tail stock spindle diameter | 75mm | ||
| Taper of tail stock spindle center hole | MT5 | ||
| Main motor | 7.5kW (10HP) | ||
| Packing dimensions (L*W*H mm) | Overall dimensions for 750mm | 2550*1140*1750 | |
| Overall dimensions for 1000mm | 2700*1140*1750 | ||
| Overall dimensions for 1500mm | 3200*1140*1750 | ||
| Overall dimensions for 2000mm | 3700*1140*1750 | ||
| Overall dimensions for 2200mm | 4030*1140*1750 | ||
| Overall dimensions for 3000mm | 4850*1140*1750 | ||
| Overall dimensions for 4000mm | 5800*1140*1750 | ||
| Weight (kg) | Length | G.W N.W. | |
| Weight for 750mm | 2520 2400 | ||
| Weight for 1000mm | 2720 2560 | ||
| Weight for 1500mm | 2980 2800 | ||
| Weight for 2000mm | 3260 3087 | ||
| Weight for 2200mm | 3490 3287 | ||
| Weight for 3000mm | 4200 3887 | ||
| Weight for 4000mm | 4850 4500 | ||
