PARAMETER:

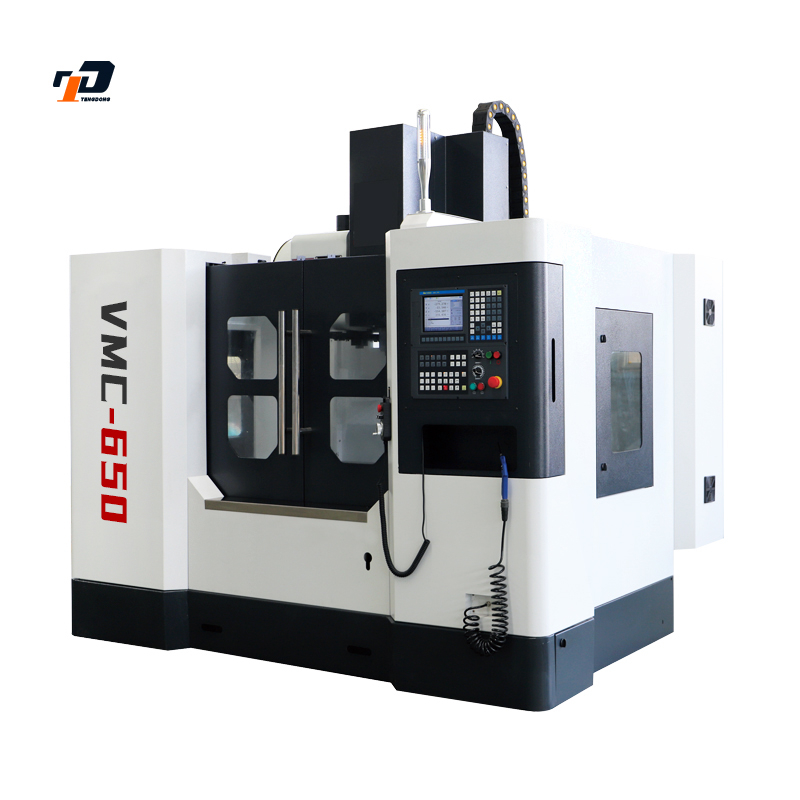

| Project | (Unit) | VMC650 |
| X-axis travel | mm | 650 |
| Y-axis travel | mm | 400 |
| Z-axis travel | mm | 500 |
| Table size | mm | 900×400 |
| Maximum bearing capacity of table | kg | 400 |
| T-slot (number of slots × width × spacing) | mm | 3×18×130 |
| Spindle taper hole | BT40 | |
| Spindle power | kw | 5.5/7.5 |
| Maximum spindle speed | rpm | 8000 |
| Fast movement(X/Y) | m/min | 48/48/36 |
| Cutting feed | mm/min | 1-8000 |
| Distance from spindle nose to work surface | mm | 120/620 |
| Distance from spindle center to column guide rail surface | mm | 481 |
| Maximum tool diameter (adjacent/empty tool) | mm | Φ90 |
| Maximum tool length | mm | 300 |
| Maximum tool weight | kg | 8 |
| Positioning accuracy | mm | ±0.008 |
| Repeated positioning accuracy | mm | ±0.005 |
| Machine weight | kg | 4000 |
| Overall dimension | mm | 2300×1950×2450 |
