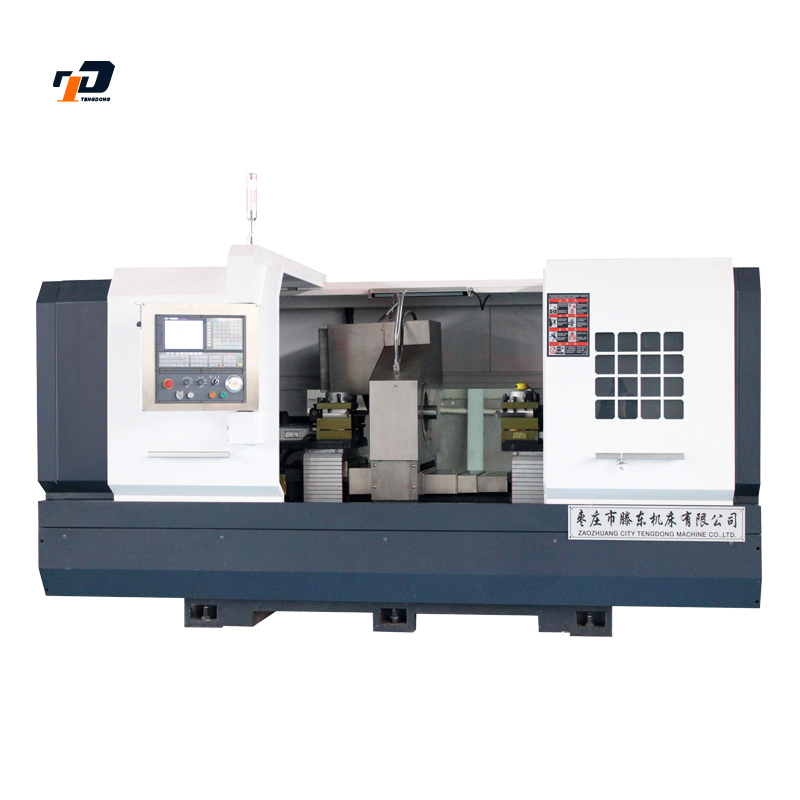

STCK120 double-head turning and milling composite machine tool

Product Description

Technical parameters:

project	unit	STCK120-500
Spindle conical pore bubble	mm	0.008
x/z vertical driving path	mm	0.02/300
x1/z1 extension path	mm	0.02/300
Parallelism between the spindle and Z/Z1 trajectory	mm	0.02/300
Repeat positioning accuracy	mm	±0.006
Surface roughness	RA	1.6
Workpiece length range	mm	300-500
Workpiece diameter range	mm	20-120
Tool transportation	T	2
X and X1 Travel	mm	300/300
Z and Z1 each trip	mm	500/500
Spindle power	KW	7.5kw
Servo power	KW	2.2*4
Pump station power supply	KW	1.5kw
Pump power supply	KW	0.75
Overall size	mm	310016001600
Machine weight	Kilogram	3500
