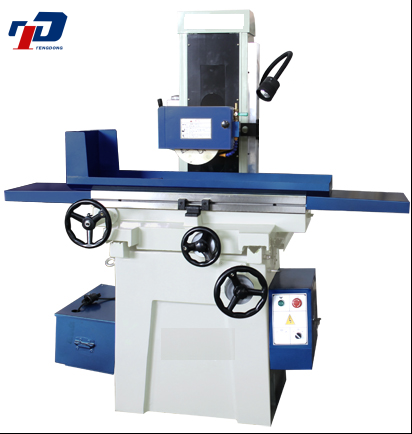

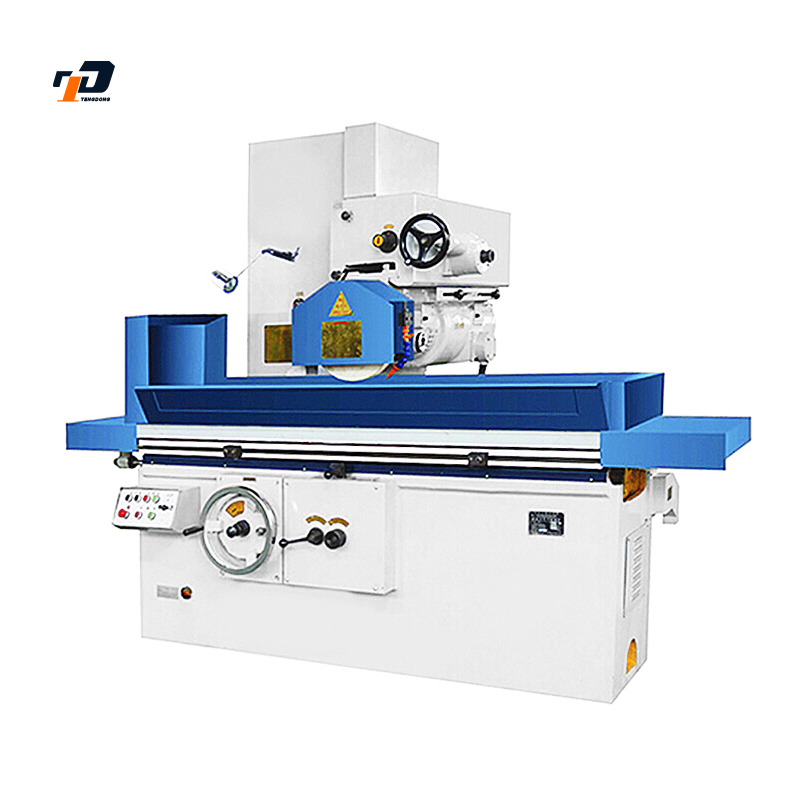

Metal Grinder Precision Plane Manual Grinder M618

  • M618

  • Teng dong

SKU:
Availability:
Inquire

PDF Export
linkedin sharing button
line sharing button
facebook sharing button
pinterest sharing button
twitter sharing button
telegram sharing button
whatsapp sharing button
wechat sharing button
sharethis sharing button


Parameter specificationsunitM618
Workbench itinerary
mm500*190
Distance from the center line of the grinding wheel shaft to the work surfacemm335
Grinding wheel speed (50HZ)r/min2850
Grinding wheel speed (60HZ)r/min
3440
Work surface sizemm460*180
Workbench T-shaped groove (number of grooves * width of grooves)mm
1*14

Horizontal (front and rear) feeding handwheel feeding

Handwheel per grid /handwheel per revolution

mm

0.02/

2.5/

Vertical (upper and down) feeding handwheel feed

Handwheel per grid /handwheel per revolution

mm

0.01/

1.25/

Grinding wheel sizemm180*13*31.75
Parallelism between the processing surface and the base surfacemm300:0.005
Surface roughness
Ra0.32
Spindle motorkw1.1
Cooling motorw40
External dimensionsmm1550*1150*1590
Machine tool weight
kg750/650


Previous:
Next:

Related Products

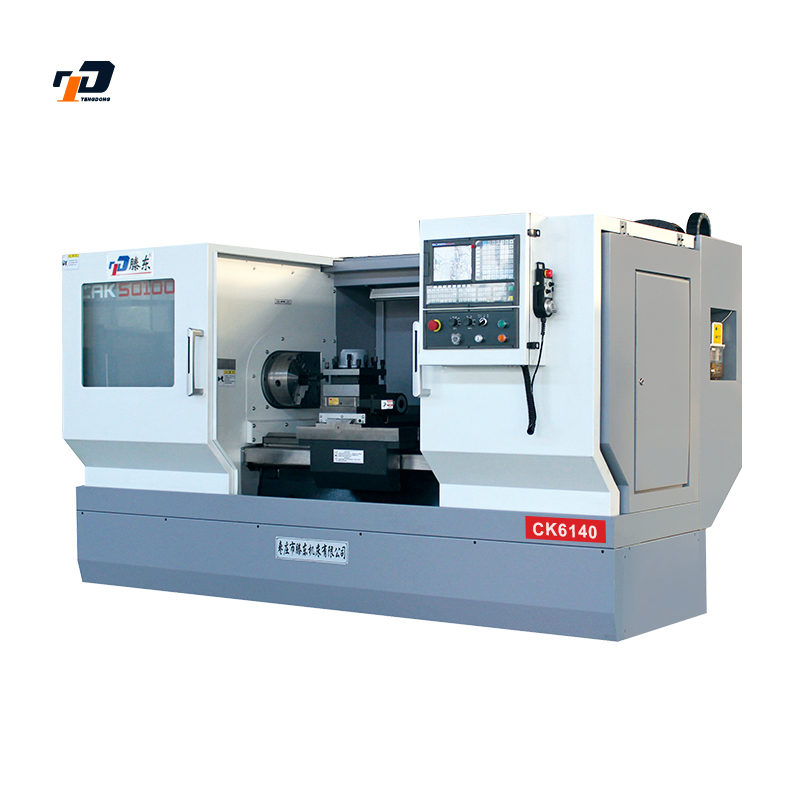

CK6140 CNC Lathe
CK6140 CNC Lathe

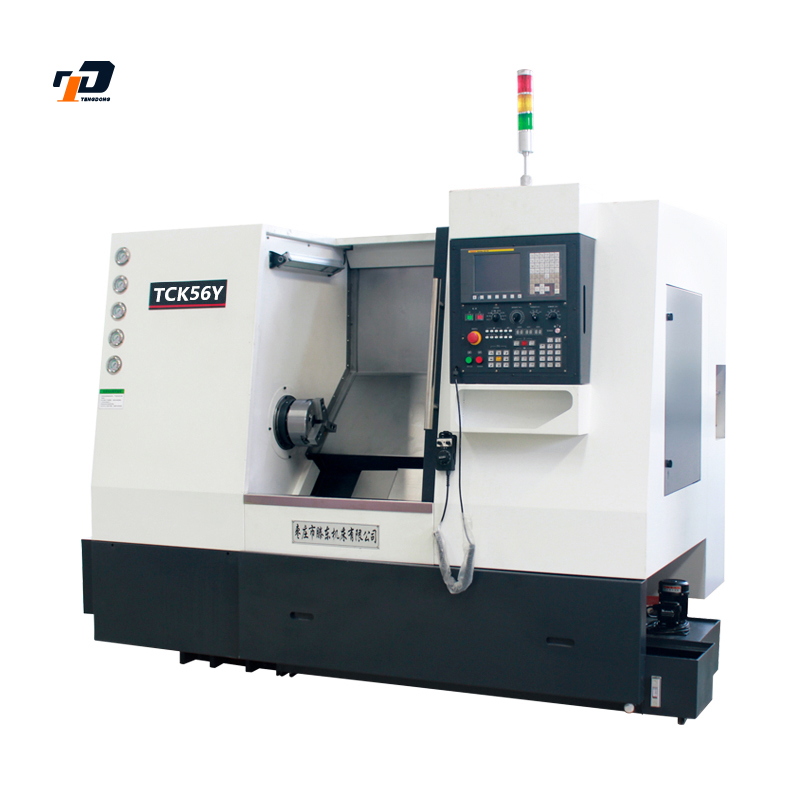

TCK56 oblique bed CNC lathe
TCK56 oblique bed CNC lathe

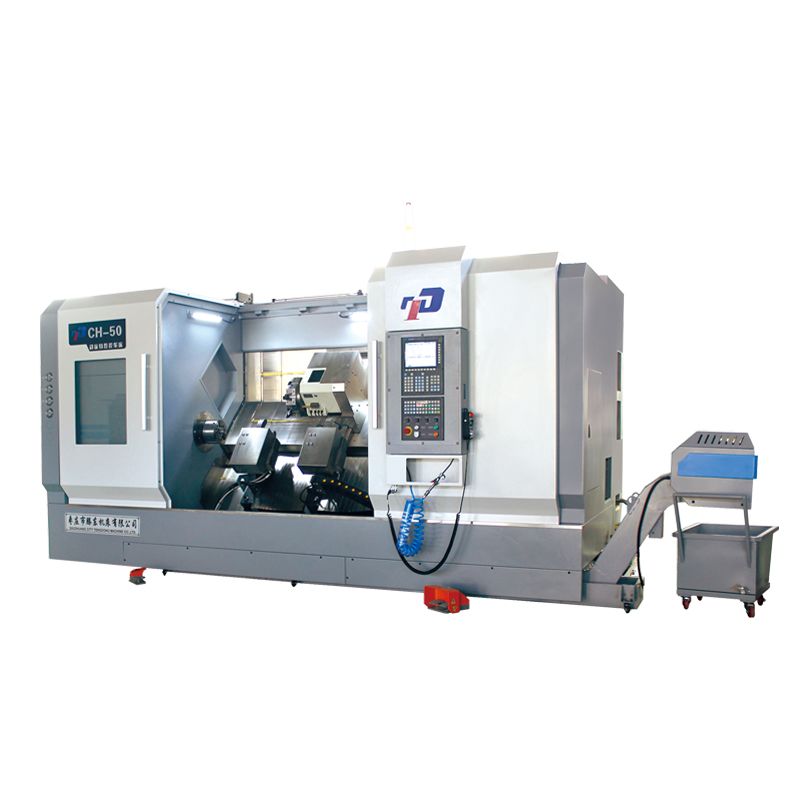

CH50 CNC lathe with inclined bed
CH50 CNC lathe with inclined bed

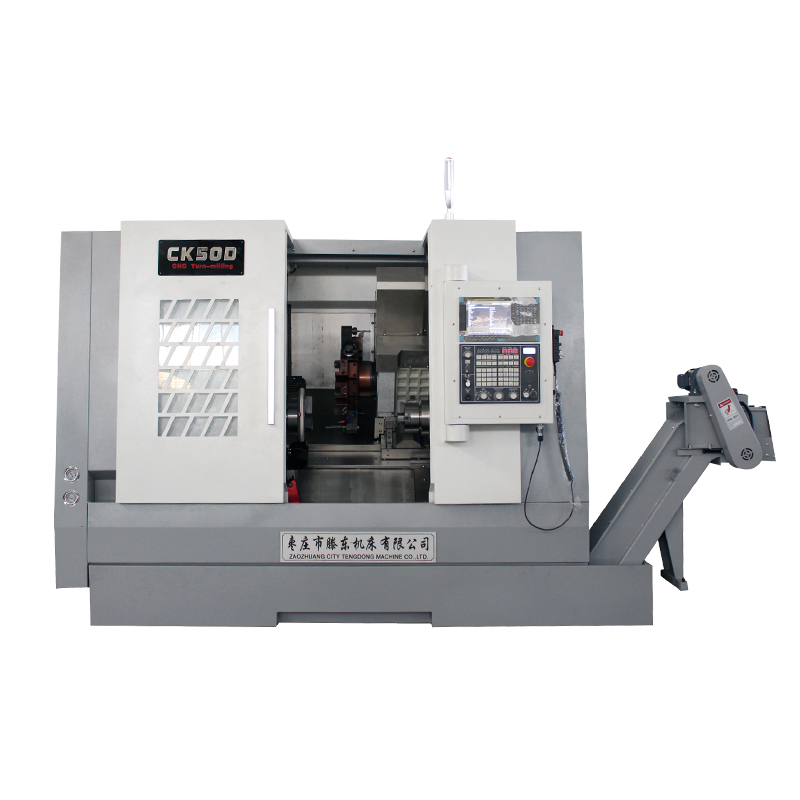

CK50D Double Spindle CNC Lathe Seriesdiameter
CK50D Double Spindle CNC Lathe Seriesdiameter

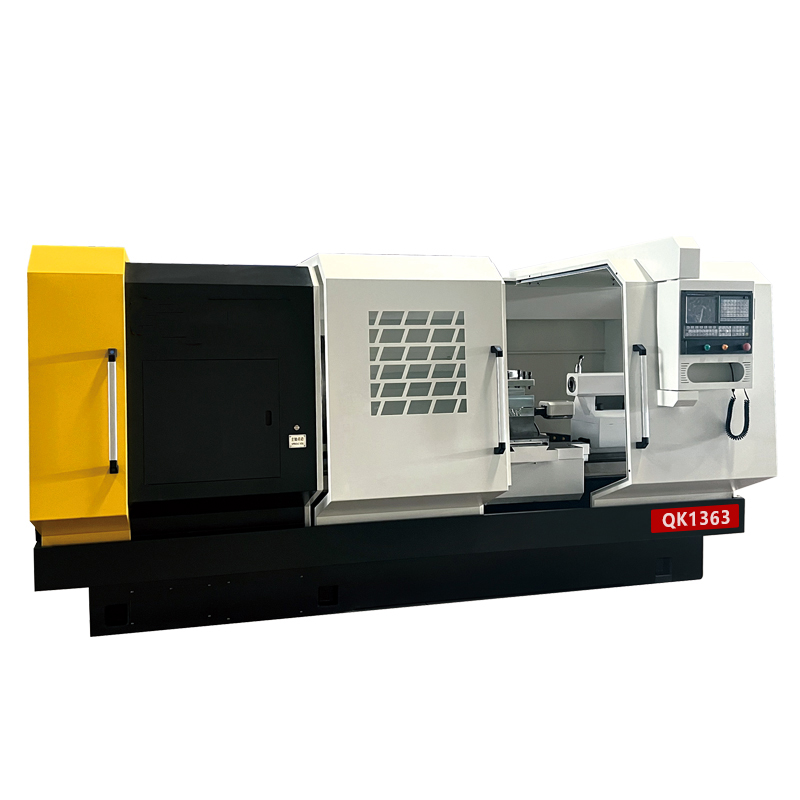

QK1363 CNC Pipe Thread Lathe
QK1363 CNC Pipe Thread Lathe

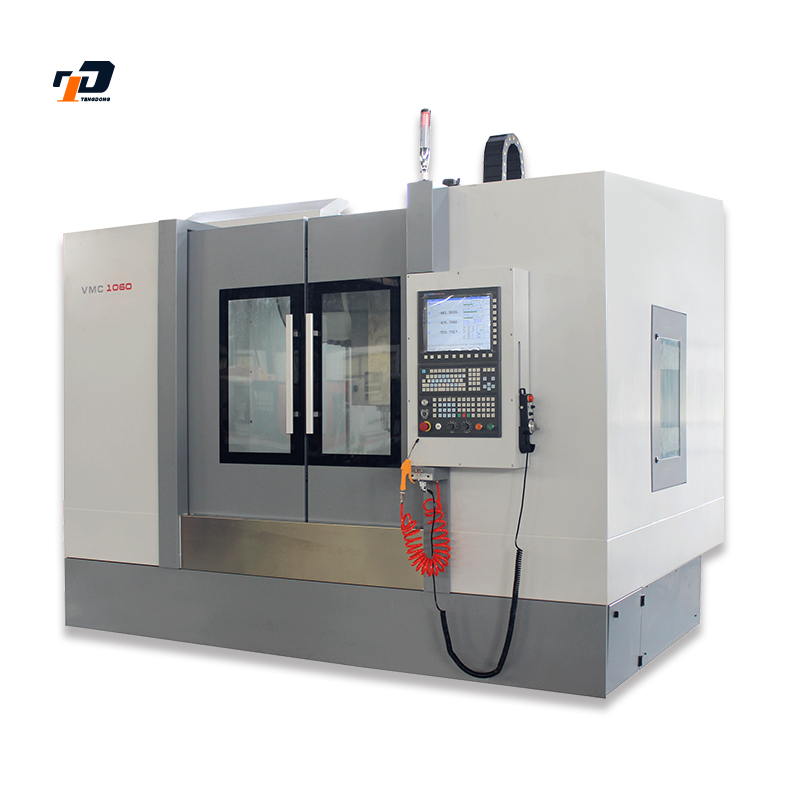

VMC1060 Vertical Machine Center
VMC1060 Vertical Machine Center

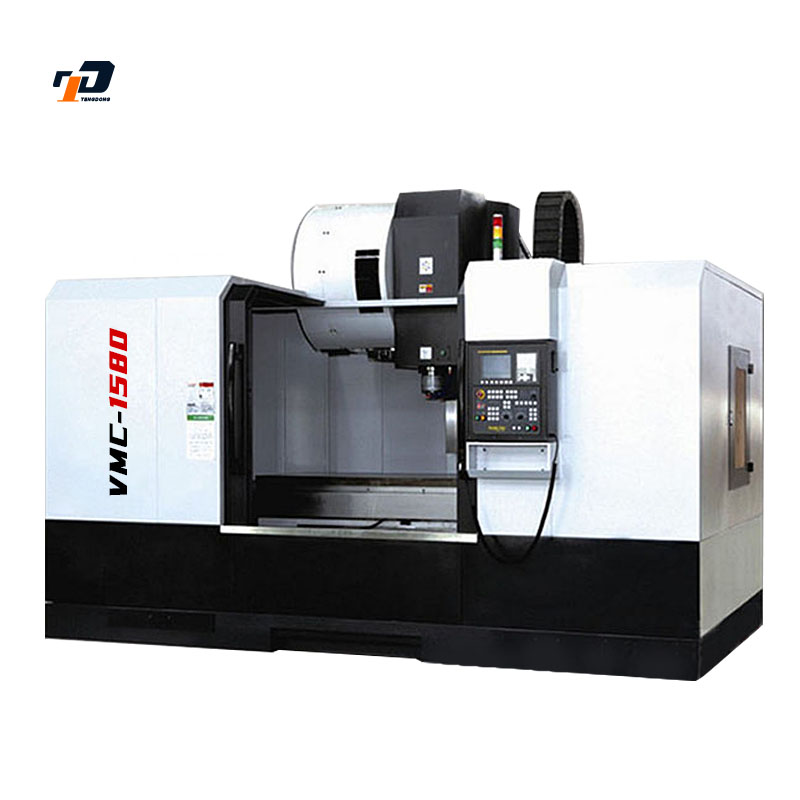

VMC1580 Vertical Machining Center
VMC1580 Vertical Machining Center

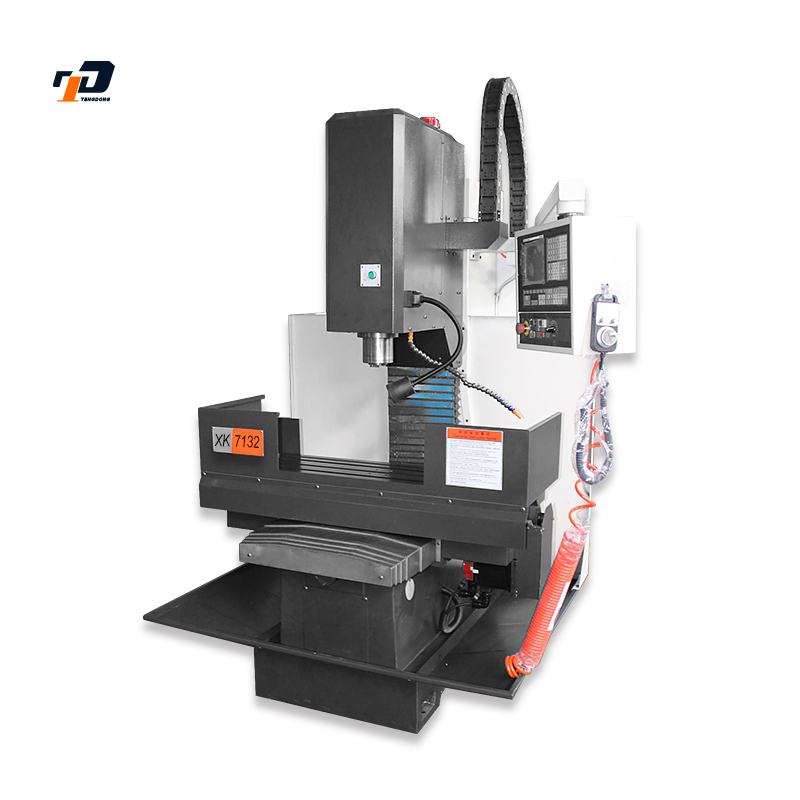

XK7132 Milling Machine
XK7132 Milling Machine

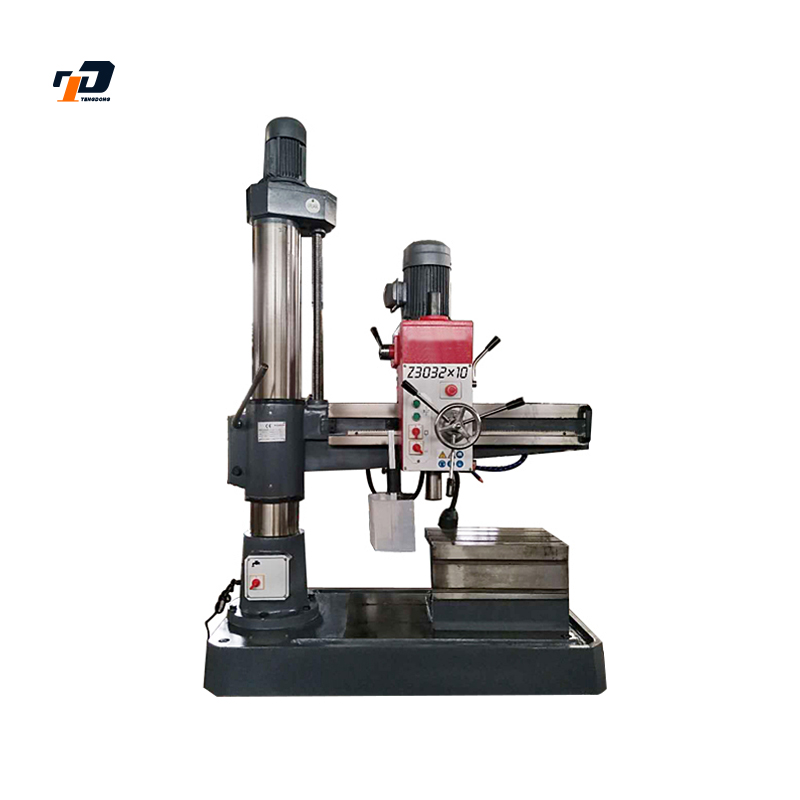

Z3032 Drilling Machine
Z3032 Drilling Machine
CH50 CNC lathe and tilted bed
CH50 CNC lathe and tilted bed

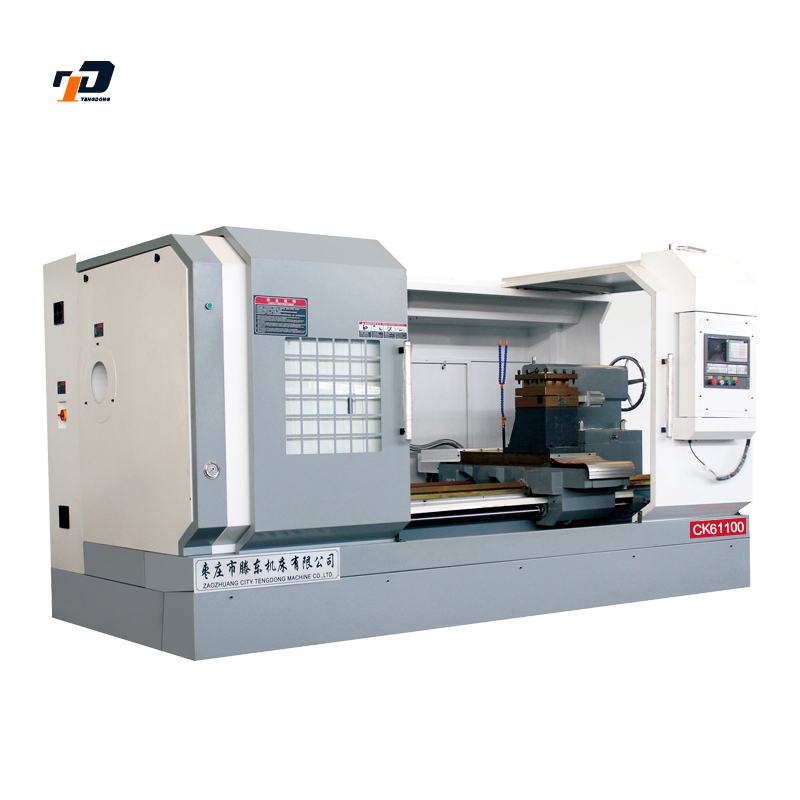

CK61100 CNC lathe
CK61100 CNC lathe

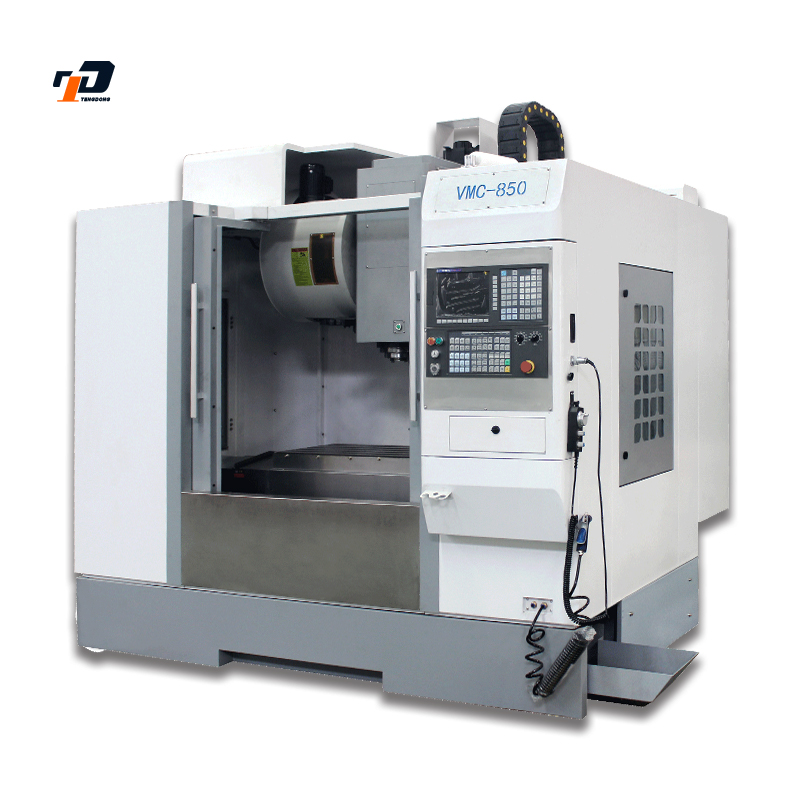

VMC850 Vertical Machining Center
VMC850 Vertical Machining Center

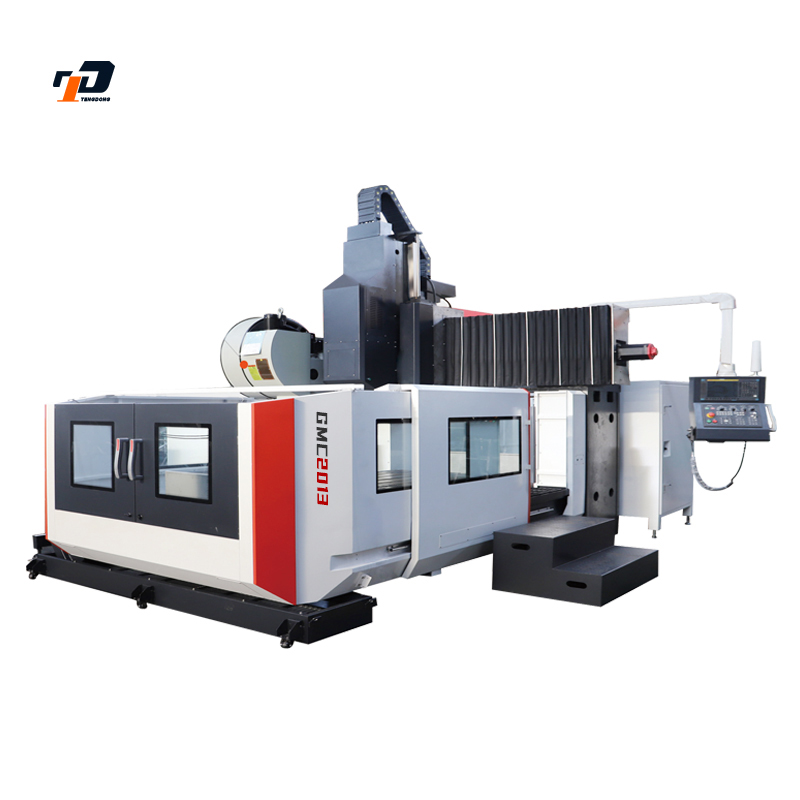

GMC2013/3013 Gantry Processing Center
GMC2013/3013 Gantry Processing Center

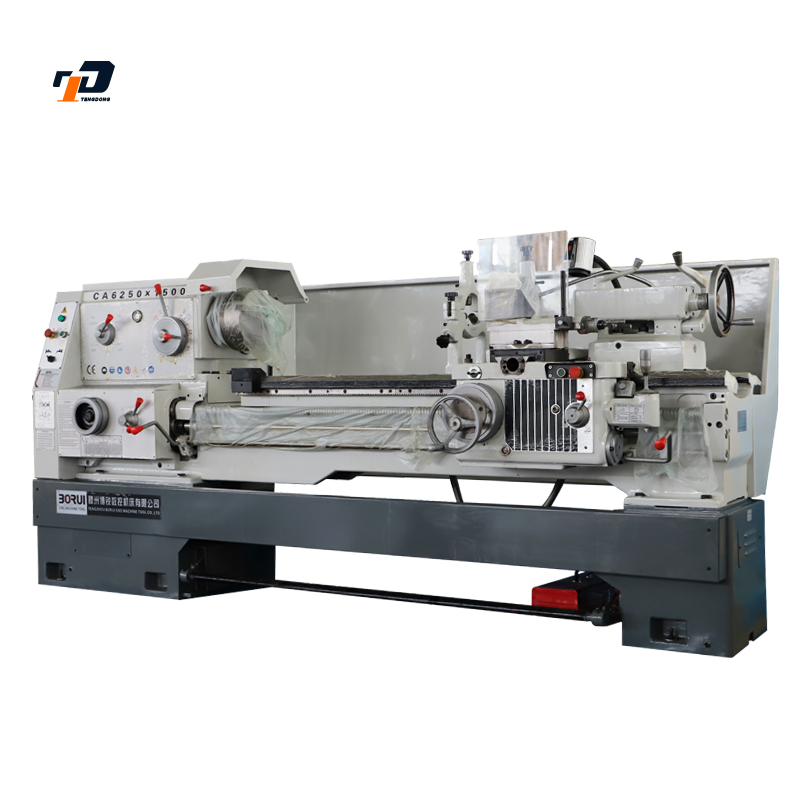

CA6150/6250 Ordinary lathe
CA6150/6250 Ordinary lathe

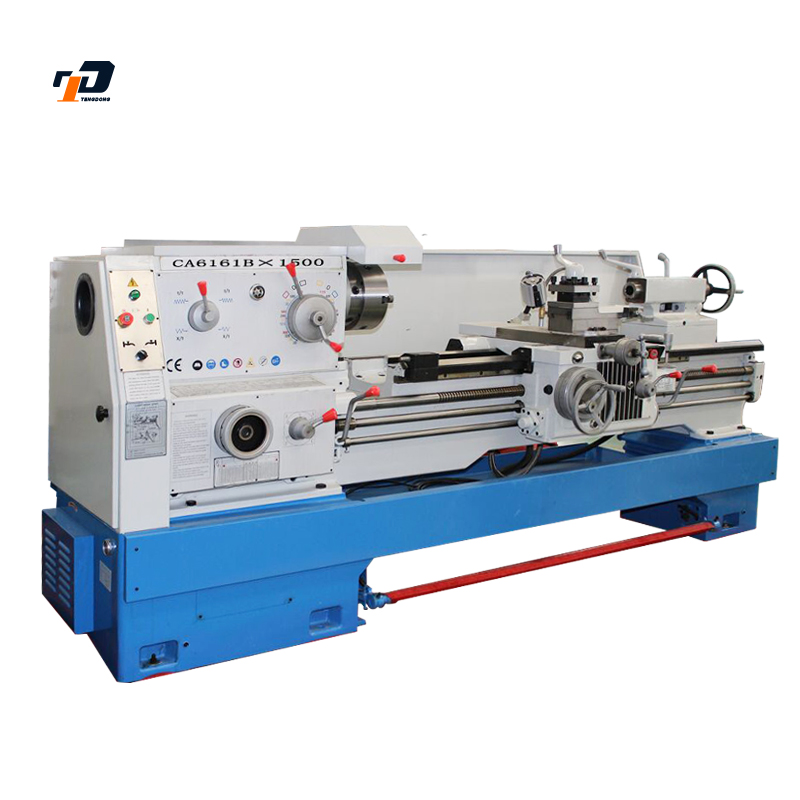

CA6161 lathe
CA6161 lathe
CA6180 ordinary lathe
CA6180 ordinary lathe

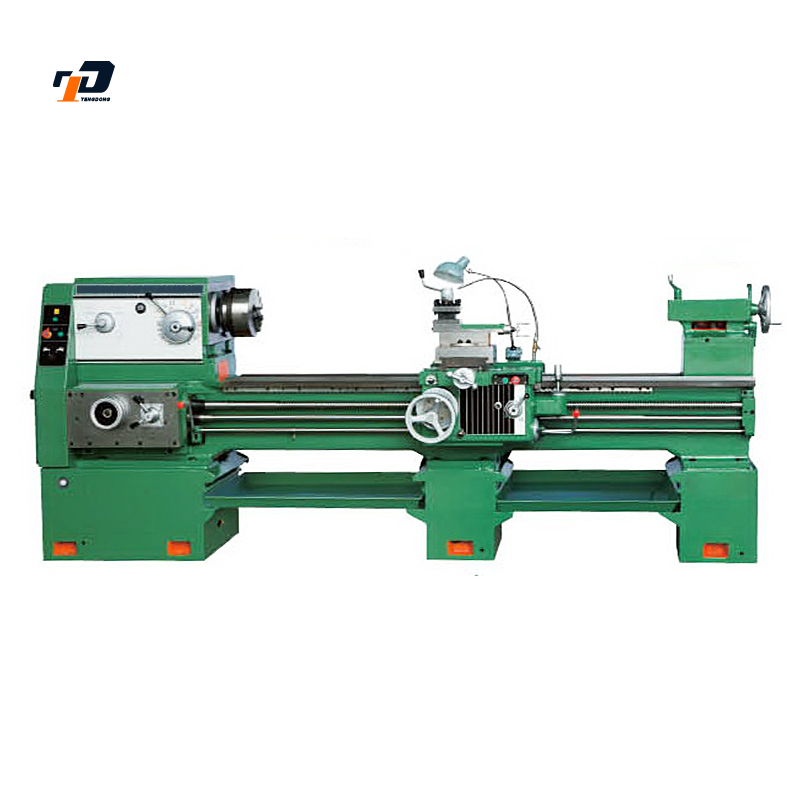

CW6180/CW6280 ordinary lathe
