PARAMETER:

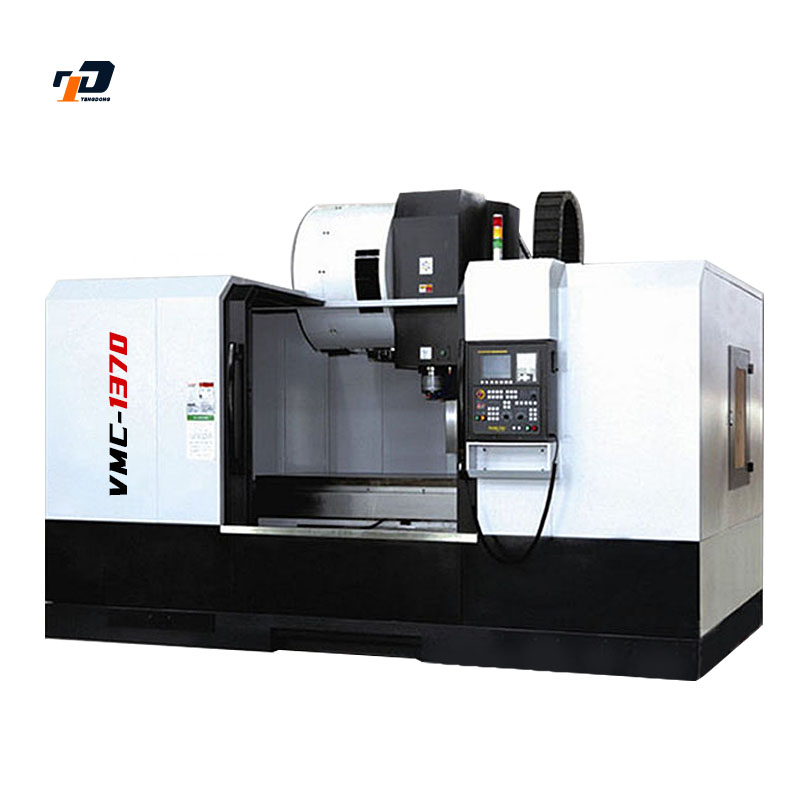

| Specifications | Units | VMC1370 |
| Table size | mm | 1400x700 |
| X axis travel | mm | 1300 |
| Y axis travel | mm | 700 |
| Z axis travel | mm | 700 |
| Max. worktable load | kg | 1400 |
| T slot(number-width-pitch) | 5-22x140 | |
| Max. spindle speed | rpm | 8000(Optional:10000 ) |
| Spindle taper | mm | BT50/BT40 |
| Main motor power | kw | 15/18.5 |
| X/Y/Z rapid traverse speed | m/min | 24/24/18 |
| Cutting feed speed | mm/min | 1-6000 |
| Guide rail type | Linear rail | |
| Distance from spindle axis to column surface | mm | 780 |
| Distance between spindle nose and worktable surface | mm | 160-860 |
| positioning accuracy | mm | ±0.0075 |
| Repeat positioning accuracy | mm | ±0.005 |
| Tool magazine | Arm 24 | |
| Max. tool diameter | mm | φ112 Adjacent)/ φ200(Apart) |
| Max.tool weight | kg | 18 |
| Machine weight | kg | 10000 |
| Overall dimension | mm | 3870x3165x2920 |
