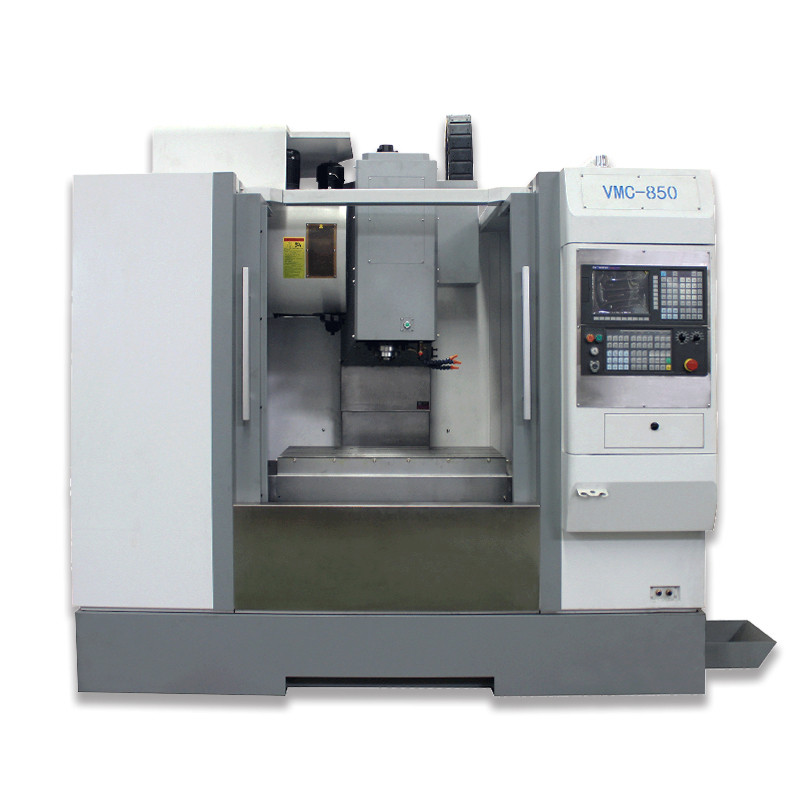

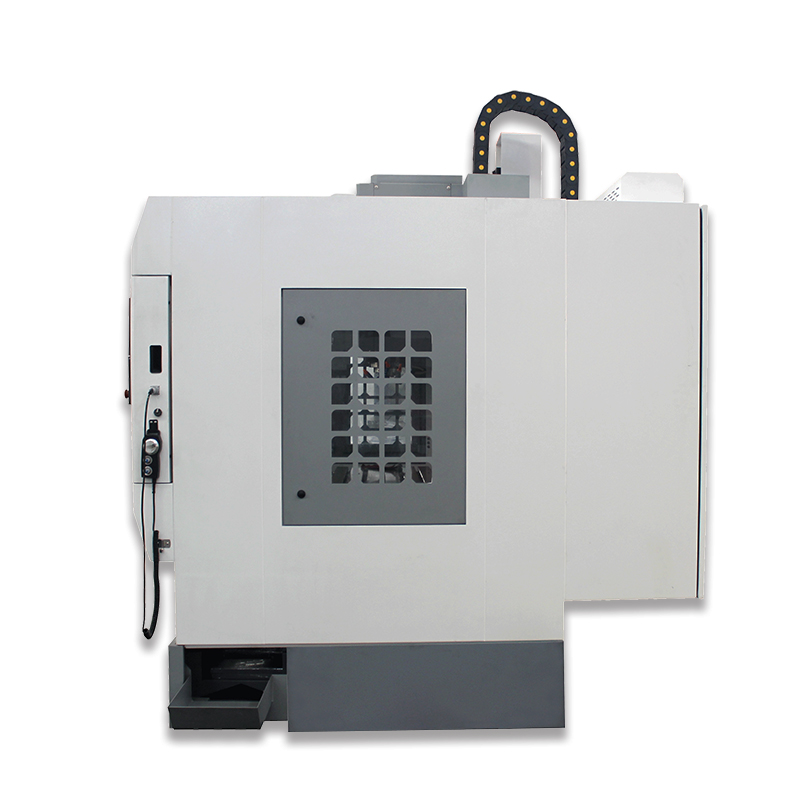

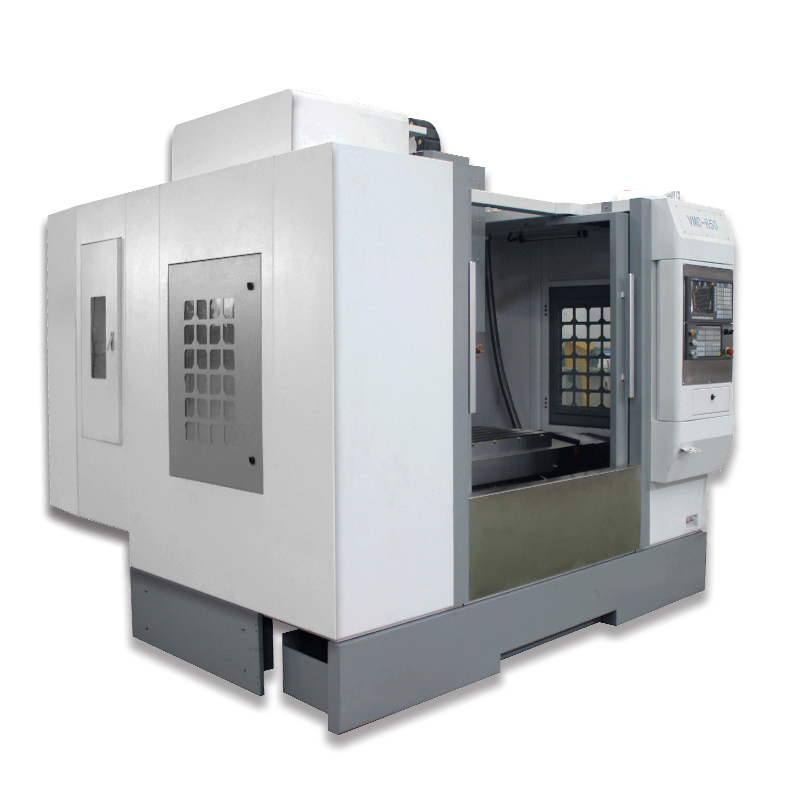

| model | unit | VMC850 |
| Workbench size | mm | 1000x500 |
| X-axis stroke | mm | 800 |
| Y-axis stroke | mm | 500 |
| Z-axis stroke | mm | 500 |
| Large load bearing of workbench | kg | 500 |
| T-shaped groove (quantity-width-gap) |
| 5-18x90 |
| Spindle speed | rpm | 8000(Optional:10000) |
| Spindle taper | mm | BT40 |
| Main motor power | kW | 7.5 |
| Fast movement speed of X/Y/Z axis | m/min | 24/24/20(Optional:48/48/36) |
| Cutting feed speed | mm/min | 1-8000 |
| Guide rail form |
| Linear rail |
| Distance from the center of the spindle to the column surface | mm | 525 |
| Distance between the end of the spindle to the surface of the workbench | mm | 130-630 |
| Positioning accuracy | mm | ±0.0075 |
| Repeat positioning accuracy | mm | ±0.005 |
| Tool library |
| Disc Arm 24 |
| Large diameter tool | mm | Φ78 (adjacent knife)/Φ120 (empty knife Apart) |
| High weight of tool | kg | 8 |
| Machine tool weight | kg | 5000 |
| External dimensions | mm | 2600x2300x2800 |
