PARAMETER:

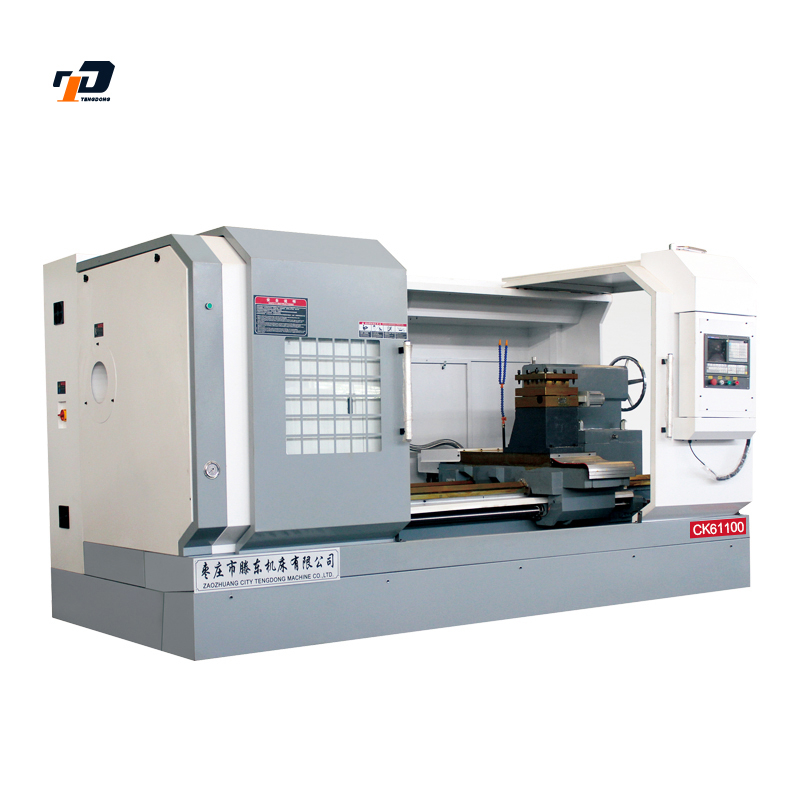

| Project | CK61100 |
| Maximum turning diameter of bed | Φ1000 |
| Maximum turning diameter on the plate | Φ680 |
| Maximum working length | 1500/2000/3000 |
| Spindle drive form | Four gears |
| Spindle speed series | Stepless in gears |
| Spindle speed | 30-84/53-150/125-350/300-835 |
| Spindle head form | D11 |
| Taper of front end of main shaft hole | Metric 1201:20 |
| Spindle through hole diameter | 105 |
| Main motor power | 11 |
| X/Z axis positioning accuracy | 0.025/0.03 |
| X/Z axis repeated positioning accuracy | 0.01/0.015 |
| Workpiece machining accuracy | IT6-IT7 |
| Workpiece surface roughness | Ra1.6 |
| X Fast moving speed | 4000 |
| Z Fast shift speed | 6000 |
| Tail seat sleeve diameter | 100 |
| Taper of inner hole of tailstock sleeve | MT6 |
| Movement of tailstock sleeve | 250 |
| Tool rest form | Electric 4-station (optional horizontal 6-station) |
| Ball screw diameter * Pitch | X:30*06 Z:50*10 |
| Cutter dimension | 40x40 |
| Machine outline dimension | 3600/4100/4600/5600*1950*2000 |
| Machine weight | 4400/4800/5600/6700 |
