Technical parameters:

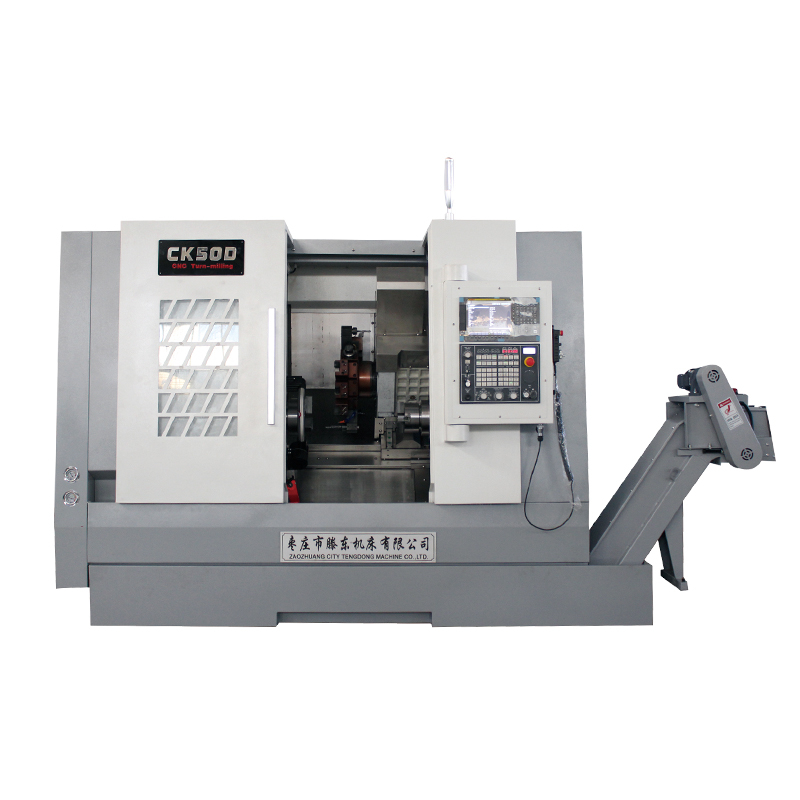

| project | unit | CK50D | |
Processing capability | Maximum turning diameter of the bed | mm | 600 |
| Maximum turning diameter | mm | 460 | |
| Standard cutting diameter | mm | 340 | |
| Maximum working length | mm | 500 | |
| Maximum rotation diameter on the skateboard | mm | 400 | |
| Spindle spacing | mm | 50-600 | |
| Chuck's size | 8'/6' | ||
| Y-axis travel | mm | 300 | |
The first spindle | Rod diameter | mm | 50 |
| Spindle end form | A2-6 | ||
| Helical diameter | mm | 65 | |
| Maximum spindle speed | RPM | 4500 | |
| Spindle torque | NM | 144 | |
| Spindle motor power | KW | 30 | |
| X/Z/Y/C Maximum stroke | mm | 280/550/±50/360° | |
Second spindle | Rod diameter | mm | 46 |
| Spindle end form | A2-5 | ||
| mm | 56 | ||
| Maximum spindle speed | RPM | 5000 | |
| Spindle torque | NM | 42 | |
| Spindle motor power | KW | 11 | |
| Tool holder tool size | BMT55-ER32 | ||
| Tool rest form | BMT5512 workstation hard railway power turret | ||
| Maximum speed tool | RPM | 5000 | |
| Machine profile size | mm | 2790×1900×1850 | |
| Machine weight | Kilogram | 4500 |
