Technical parameters:

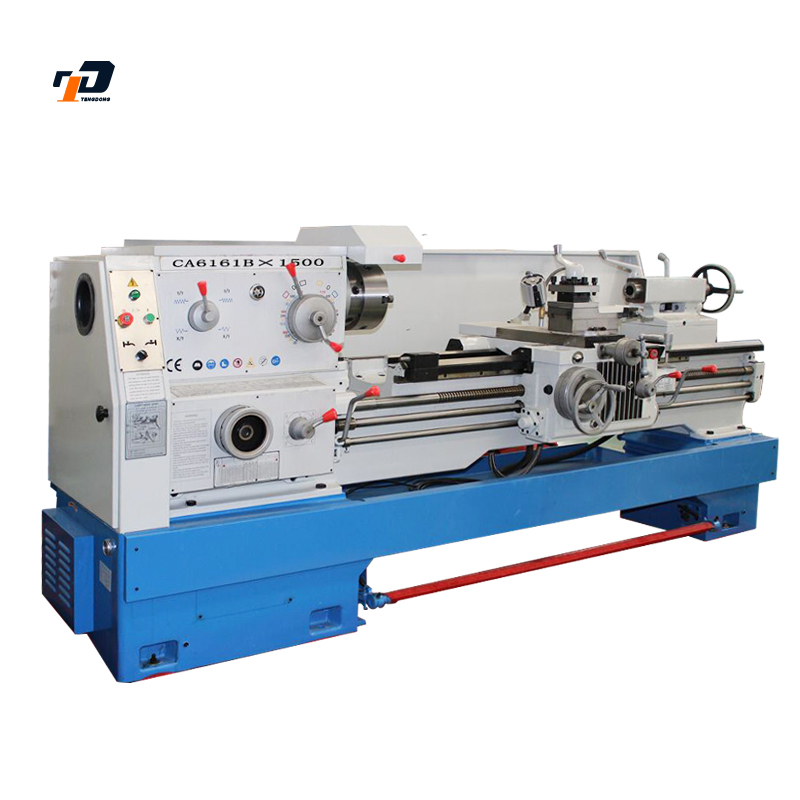

| model | unit | CA6161×750/1000/1500/2000/3000/4000 | ||
| The maximum rotation diameter of the workpiece on the bed | mm | 610 | ||
| Maximum workpiece rotation diameter on the tool holder | mm | 370 | ||
| Maximum workpiece diameter of saddle groove | mm | 830 | ||
| Effective length of saddle groove | mm | 210 | ||
| Bed width | mm | 400 | ||
| Maximum workpiece length | mm | 750/1000/1500/2000/3000/4000 | ||
| Cutter cross section | mm | 25 X25 | ||
| Spindle front end tapered hole: | Mo's | No. 6 | ||
| Feed quantity | 64 kinds | |||
| Spindle speed range (series) | r/min | 10-1400/16-1400 (level 24) | ||
| Spindle through hole diameter | mm | 52., 80, 105 | ||
| Metric thread range (number of types) | mm | 1-192mm (44 types) | ||
| English thread range (number of types) | Teeth/time | 2-24tpi (21 types) | ||
| Module-digital thread | 0.25-48 (39 types of modulus) | |||
| Diameter thread | 1-96DP (37 types) | |||
| Maximum stroke of tailstock spindle | mm | 150mm | ||
| Tail seat spindle hole taper | Mo's | Mohs 5 | ||
| Tail seat spindle diameter | mm | 75 | ||
| Main motor power | kw | 7.5 | ||
| Machine tool weight | kg | Gross weight | net weight | |
| Length 750mm | 2300 | 2180 | ||
| Length 1000mm | 2380 | 2250 | ||
| Length 1500mm | 2577 | 2437 | ||
| Length 2000mm | 2940 | 2787 | ||
| Length 3000mm | 3600 | 3450 | ||
| Length 4000mm | 3950 | 3800 | ||
| Packaging size | Length 750mm | mm | 2550×1140×1750 | |
| Length 1000mm | 2700×1140×1750 | |||
| Length 1500mm | 3200×1140×1750 | |||
| Length 2000mm | 3700×1140×1750 | |||
| Length 3000mm | 4850×1140×1750 | |||
| Length 4000mm | 5800×1140×1750 | |||
