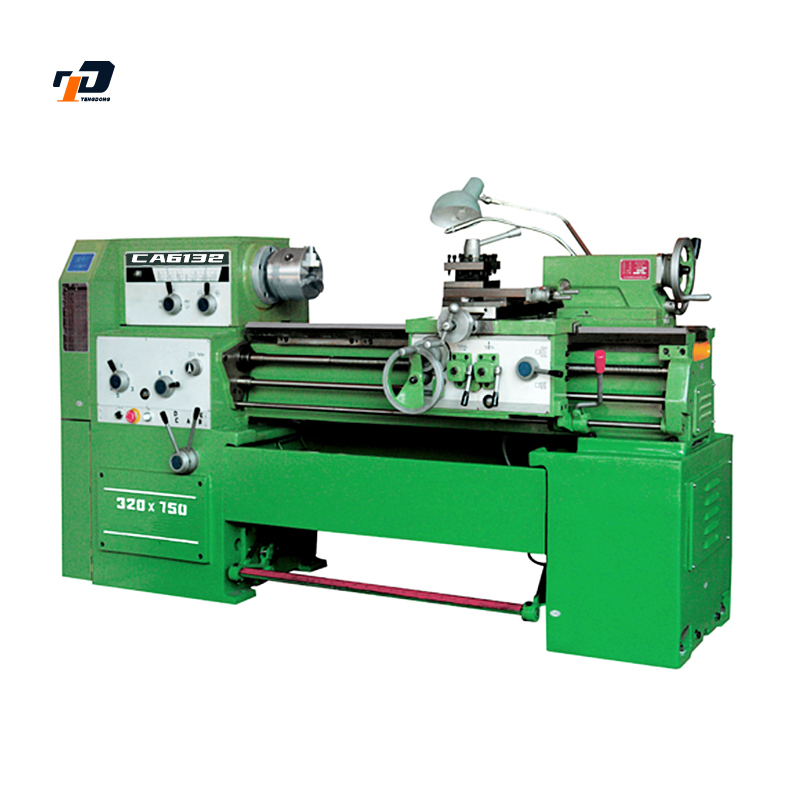

| model | unit | C6132D |
| Maximum slewing diameter of bed | mm | 320 |
| Maximum slewing diameter on cross-slide | mm | 180 |
| Maximum workpiece length | mm | 750/1000 |
| Spindle hole diameter | mm | 52 |
| Spindle diameter taper | - | MT6 |
| Spindle speed range | rpm | 30-1600 |
| Spindle speed stage | - | 12 |
| Medium towing board stroke | mm | 240 |
| Knife holder stroke | mm | 140 |
| Tool size | mm | 20*20 |
| Longitudinal feed range | mm/r | 0.039-1.05 |
| Cross-directional feed range | mm/r | 0.019-0.52 |
| Metric thread number | kinds | 25 |
| Metric thread range | mm | 0.5-20 |
| Number of English thread types | kinds | 35 |
| Imperial thread range | TPI | 13/4 -80 |
| Tail seat sleeve diameter | mm | 60 |
| Tail seat sleeve cone hole | - | MT4 |
| Tail frame sleeve stroke | mm | 100 |
| Main motor power | kw | 3 |
| Cooling motor power | kw | 0.09 |
| Machine tool weight | kg | 1400 |
| kg | 1500 |
| External dimensions (length x width x height) | mm | 2200*1140*1600 |
| mm | 2400*1140*1600 |
