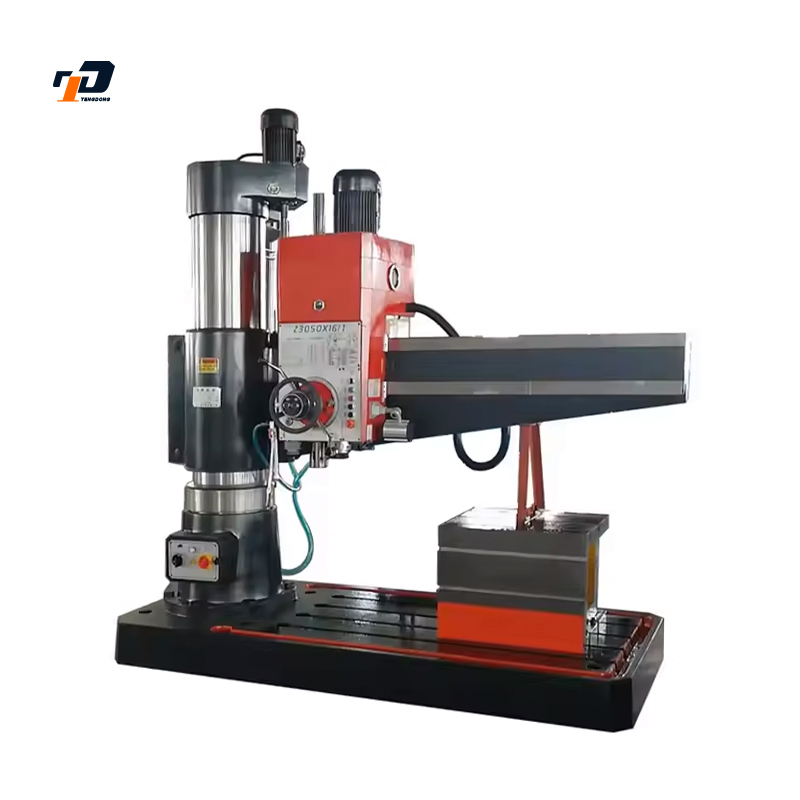

Z3040 rocker drilling machine

  • Z3040

  • tengdong

SKU:
Availability:
Inquire

PDF Export
linkedin sharing button
line sharing button
facebook sharing button
pinterest sharing button
twitter sharing button
telegram sharing button
whatsapp sharing button
wechat sharing button
sharethis sharing button
Previous:
Next:
Product Description

Technical parameters:

modelunitZ3040
Large drilling diametermm40
Horizontal movement distance of the spindle boxmm715
Distance from the center line of the spindle to the column bus linemm330-1050
Distance from spindle to workbenchmm170-1110
Rocker lift distancemm700
Rocker vertical movement speedm/mm1.32
Rocker rotation angle°±90°
Spindle conical holeMTMT4
Spindle speed ranger/mm40-1896
Spindle speed stage
12
Spindle feed rangemm/r0.13-0.54
Spindle feed series
4
Spindle strokemm260
Large spindle torqueN200
Large feed resistance of spindle torsionN10000
Spindle motor powerkw2.2
Machine tool weightkg1600
External dimensionsmm1655×720×2200


Product Description
RECOMMENDED PRODUCTS

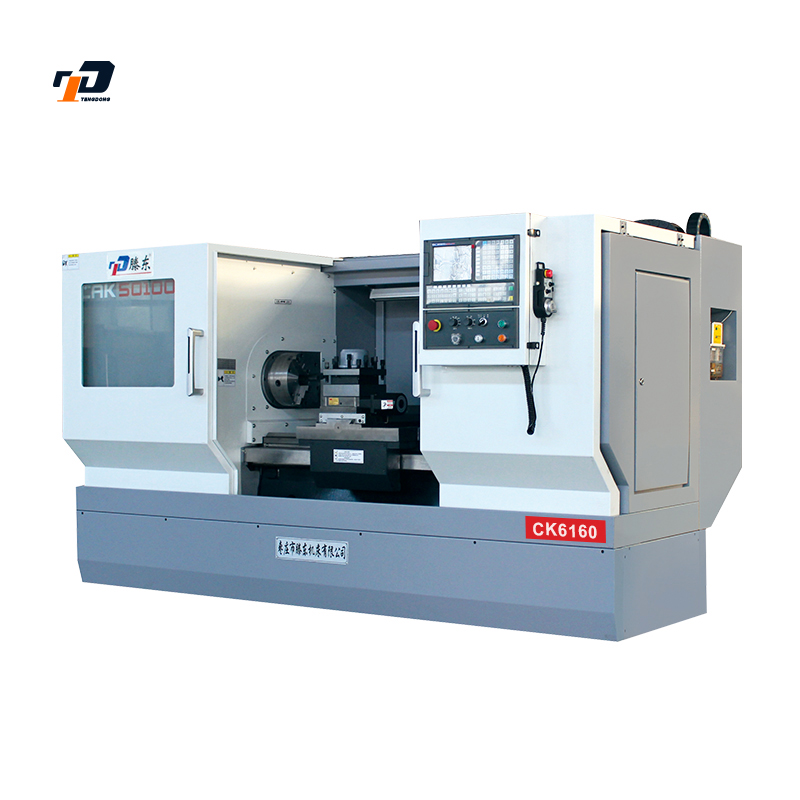

CK6160 CNC Lathe
CK6160 CNC Lathe
VMC1160 Vertical Machining Center
VMC1160 Vertical Machining Center
HMC500 Horizontal Machining Center
HMC500 Horizontal Machining Center
GMC2021/3021/4021 Gantry Machining Center
GMC2021/3021/4021 Gantry Machining Center
TLC1250 Vertical CNC Lathe Series
TLC1250 Vertical CNC Lathe Series
C6266 Lathe
C6266 Lathe
CA6161 Lathe
CA6161 Lathe
CA6180 Lathe
CA6180 Lathe
CK6180 CNC lathe
CK6180 CNC lathe
TCK56 inclined lathe milling composite machine tool
TCK56 inclined lathe milling composite machine tool

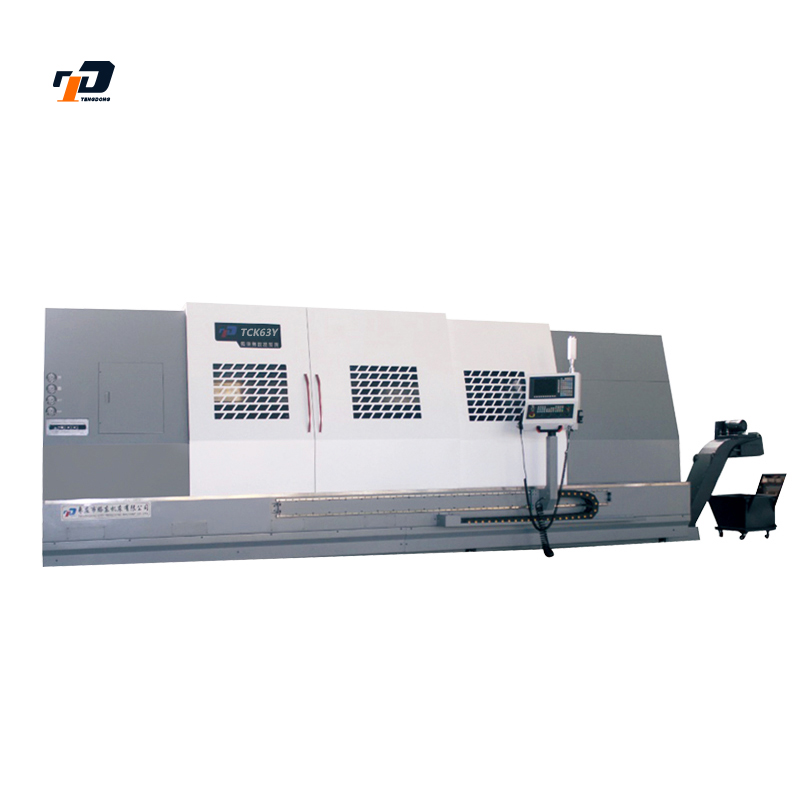

TCK63 turning and milling composite machine tool
TCK63 turning and milling composite machine tool
TD65
VMC850 Vertical Machining Center
VMC850 Vertical Machining Center

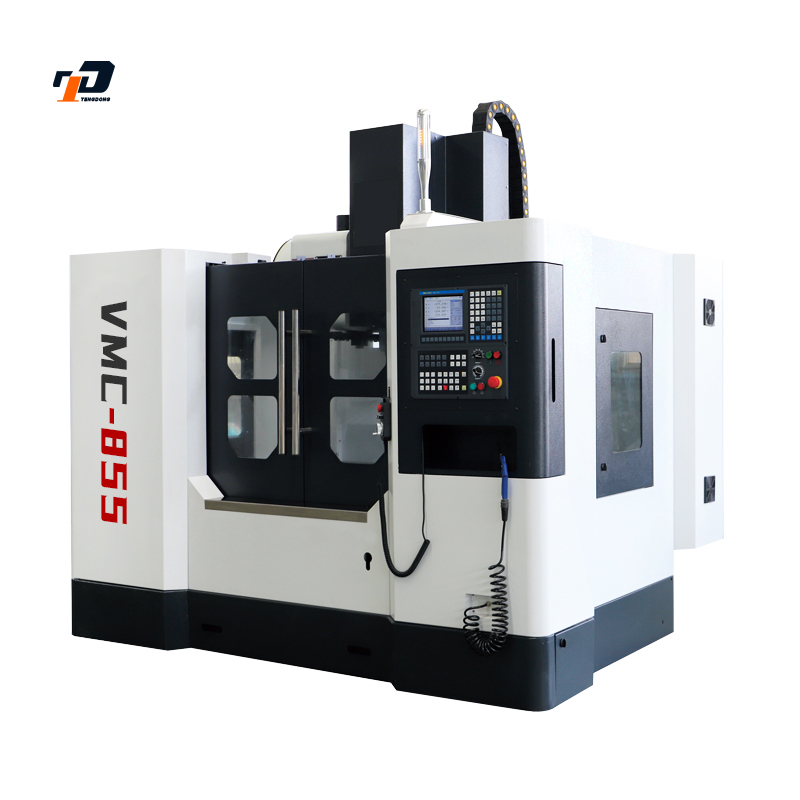

VMC855 Vertical Machining Center
