PARAMETER:

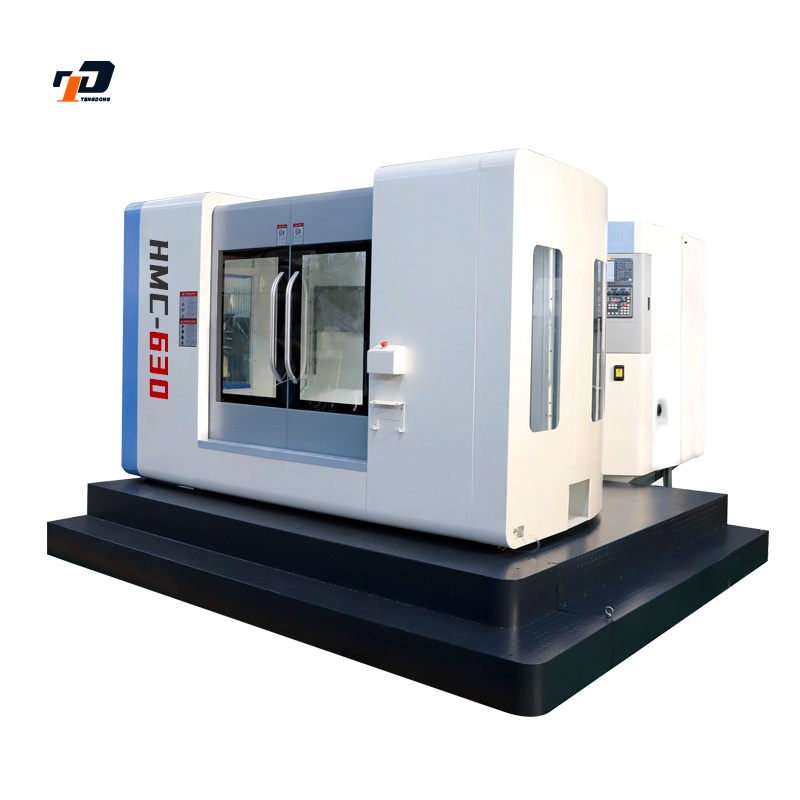

| Project | unit | HMC630 |
| Work surface size (length X width) | mm | 630X700 |
| Work table left and right stroke (X axis) | mm | 100 |
| Worktable front and rear stroke (Z axis) | mm | 800 |
| Headstock up and down stroke (Y axis) | mm | 740 |
| Spindle end to table center distance | mm | 150~950 |
| Spindle end center to work surface distance | mm | 60~800 -80~660 |
| Spindle taper dimension number | mm | ISO50 |
| Spindle speed range | 20~6000 | |
| Fast moving speed (X, Y, Z) | rpm | 36/36/30 |
| Turntable maximum speed | m/min | 10 |
| Positioning accuracy of linear motion coordinates | mm | 0.012 |
| Repeated positioning accuracy of linear motion coordinates | mm | 0.008 |
| Tool magazine capacity | 把 | 24 |
| Tool change time | 2.5 | |
| Tool weight | kg | 18 |
| Maximum diameter of the tool | mm | 112 |
| Maximum length of tool | mm | 320 |
| main motor power | kw | 15/18 |
| Spindle maximum torque | N.m | 141 |
| Machine size (length X width X height) | cm | 380X270X275 |
