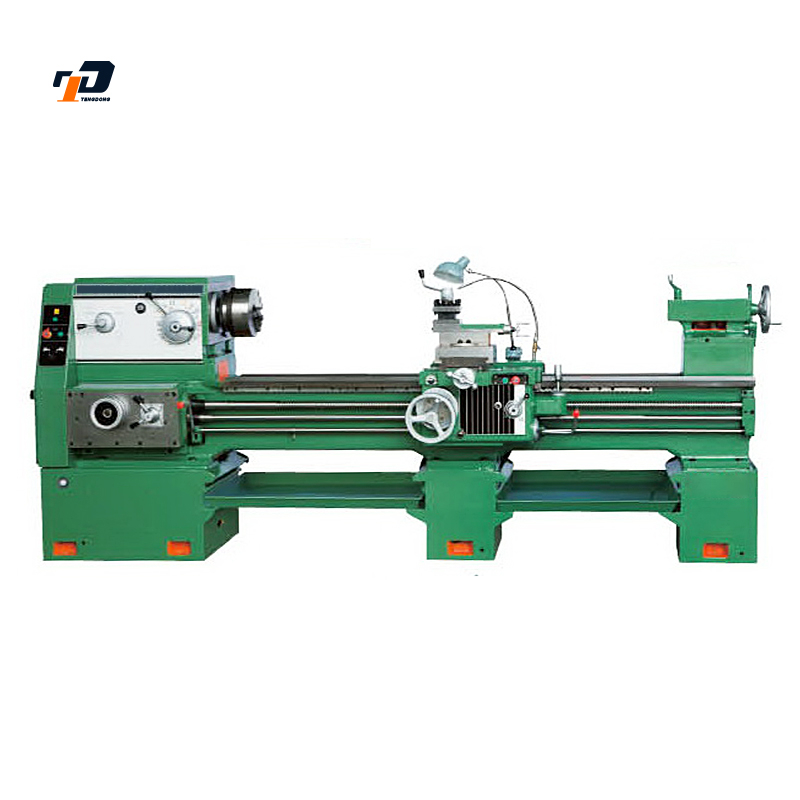

Technical parameters:
| model | unit | CW6163/CW6263 | CW6180/CW6280 | ||
| Bed body rotation diameter | mm | 630 | 800 | ||
| Slewing diameter on the tool holder | mm | 350 | 480 | ||
| Workpiece length | mm | 1500-10000 | 1500-12000 | ||
| Slewing diameter/effective width in saddle groove | mm | 800/300 | 1000/300 | ||
| Spindle through hole diameter and shaft head type | 104. C11 (Series B) D11 (Series C) | ||||
| Spindle hole anterior vertebra and cone | 120 (Series B) Mohs 5° | ||||
| Spindle speed series and range | r/min | 18 types 7.5-1000 (Series B) | 18 types 5.4-720 | ||
| 18 types 7.5-800 (C series) | |||||
| Order of feed and range | mm/r | 64 types 0.05-24.3 | 64 types 0.06-24.3 | ||
| Range 1:1 | mm/r | 0.1-1.52 | |||
| Range 16:1 | mm/r | 1.6-24.3 | |||
| Micro feed range with exchange gears | mm/r | 0.05-0.912 | 0.06-0.912 | ||
| Ratio of transverse feed to longitudinal feed | January 2 | ||||
| Fast movement speed of bed saddle | mm/min | 4000 | |||
| Machine tool screw pitch | 12(metric); 1/2(ind) | ||||
| Metric thread number and range | mm | 50 types 1-240 (14 other types of non-standard threads) | |||
| Number of English thread types and range | tpi | 26 types 14-1 | |||
| Module-digital thread number and range | mm | 53 types 0.5-120 | |||
| Number of diameter threads and range | DP | 24 types 28-1 | |||
| Large horizontal stroke of the cutter | mm | 420 | 500 | ||
| Knife holder stroke | mm | 200 | 200 | ||
| Tail seat sleeve stroke | mm | 250 | 250 | ||
| Tail seat sleeve tapered | Mohs 6° | Mohs 6° | |||
| Bed rail width and quenching hardness | mm | 550 RC50 | 600 RC50 | ||
| Main motor power | kw | 11 | 11 | ||
| Fast motor power | kw | 1.1 | 1.1 | ||
| Cooling pump motor power | w | 120 | 120 | ||
| Machine tool width x height/package width x height | mm | 1380x1450/1780x1890 | 1550x1630/1880x1910 | ||
| Machine tool length/packing box length | Workpiece length | 1500 | mm | 3690/4240 | 3700/1450 |
| 3000 | 5190/5740 | 5250/5650 | |||
| 5000 | 7200/7750 | 7250/8050 | |||
| Net weight/gross weight (kg) of machine tool | Workpiece length | 1500 | mm | 3700 | 3800 |
| 3000 | 4700 | 4800 | |||
| 5000 | 6800 | 6900 | |||
| Weight bearing | kg | 2000 | 2000 | ||
