Technical parameters:

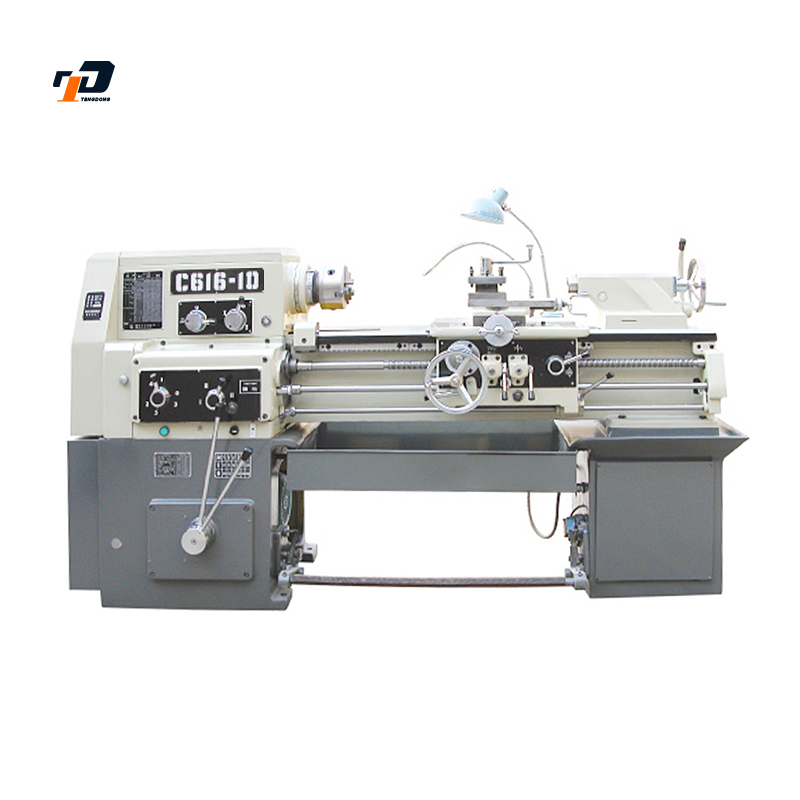

| model | C616-1D |
| Maximum workpiece diameter of the bed | 320mm |
| Maximum machining length | 750mm |
| Spindle hole taper | Mohist No.5 |
| Spindle through hole diameter | 30/40mm |
| Speed range | 45-1980r/min(12steps) |
| Motor power | 4kw |
| Metric threads | 0.5-9 (17 types) mm |
| Imperial thread | 38-2 (32 types) tpi |
| Module-digital thread range | 0.5-9 (17 types) mm |
| External dimensions | 2400*900*1540 |
| net weight | 1600kg |
