Technical parameters:

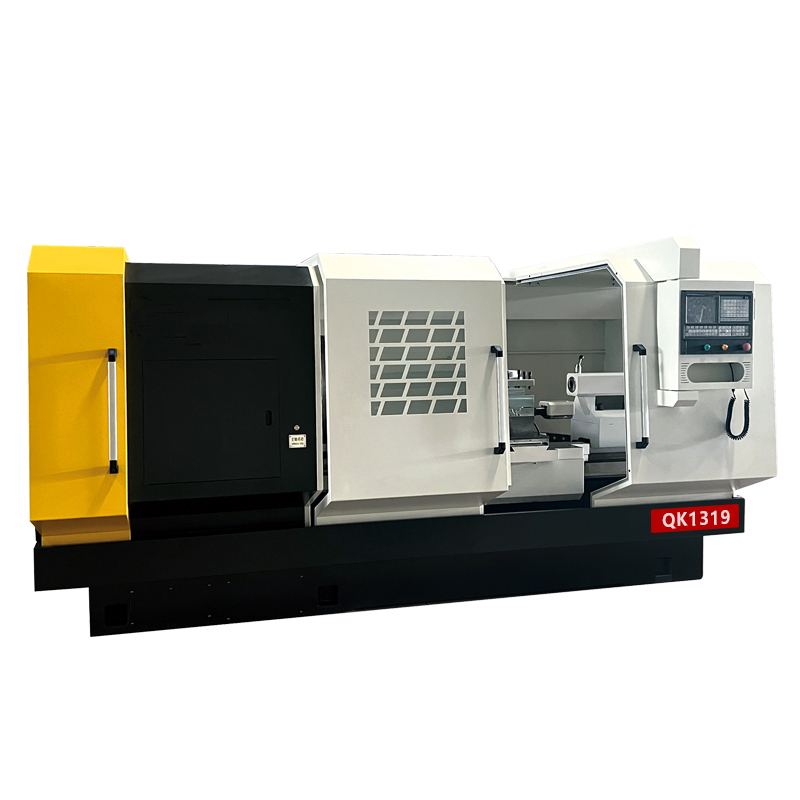

| project | unit | QK1319 | |
| Large slewing diameter of bed | mm | 630 | |
| Large swing diameter on the knife holder | mm | 350 | |
| Large top-level | mm | 1500/2000/3000 | |
| Bed width | mm | 550 | |
| Spindle hole diameter | mm | 190 | |
| Main motor power | Kw | 15 | |
| Spindle speed change | In-speed change in gear | ||
| Spindle speed range | r/min | Low-end (L): 25-89 High-end (H): 108-382 | |
| Large stroke of X/Z axis | mm | X:350 Z:1250/1750/2750 | |
| Fast movement speed of X/Z axis | mm/min | 4000 | |
| X-axis motor | Speed | r/min | 1500 |
| Torque | Nm | 10 | |
| power | Kw | 1.5 | |
| Z-axis motor | Speed | r/min | 1500 |
| Torque | Nm | 15 | |
| power | Kw | 2.3 | |
| Tail seat sleeve | diameter | mm | 100 |
| journey | mm | 250 | |
| Taper | MT5 | ||
| model | HAK21250 | ||
| Electric knife holder | form | Electric vertical | |
| size | mm | 250X250 | |
| Time for changing tools | S | 4.1 | |
| Chuck | 500 manual three -jaw manua | ||
| Positioning accuracy | mm | 0.020 | |
| Repeat positioning accuracy | mm | 0.01 | |
| Machine tool size (length*width*height) | mm | 4400/1900/2000 | |
| Net weight of the machine tool | T | 4.5 | |
