PARAMETER:

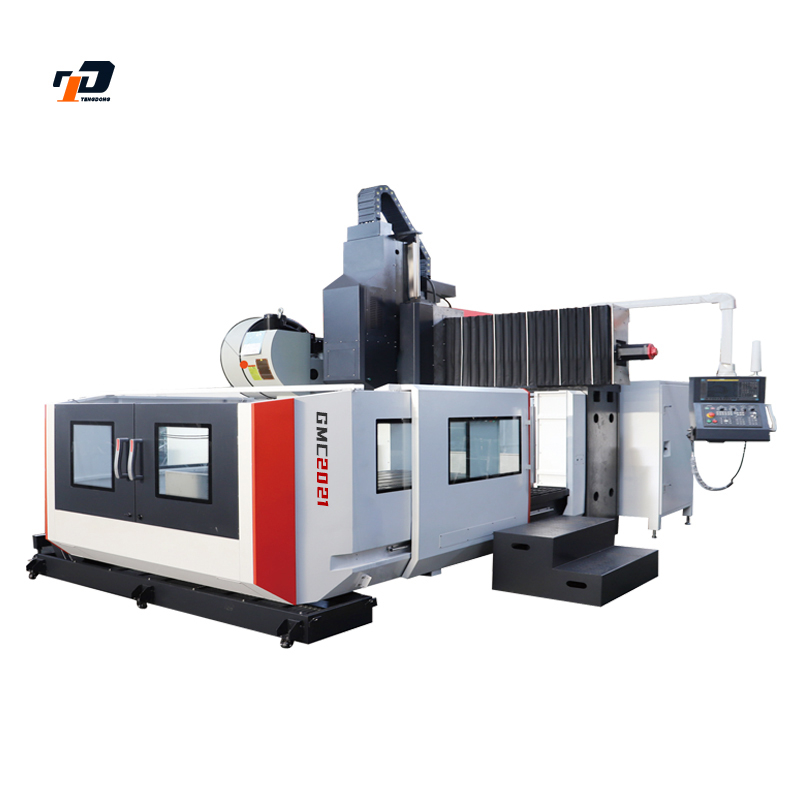

| project | Project | (Unit) | GMC2021/3021/4021 |
Processing range | X-axis travel | mm | 2000/3000/4000 |
| Y-axis travel | mm | 2100 | |
| Z-axis travel | mm | 800 | |
| Gantry width | mm | 2150 | |
| Spindle end to table distance | mm | 200-1200 | |
Work surface | Table size(L × W) | mm | 2000/3000/4000×1800 |
| Maximum bearing capacity of table | T | 5/6/7 | |
| T-slot (Number of slots- slot width × spacing) | 7-22×180 | ||
Principal axis | Spindle revolution | rpm | 6000 |
| Spindle type | Belt BT50 | ||
| Spindle motor | kw | Bilp30 15/18.5KW 143NM | |
| X/Y/Z axis guide form | RGW/H55 Wire gauge | ||
| XYZ Fast moving speed | m/min | 12/12/10 | |
| Cutting feed speed | mm/min | 6000 | |
Automatic tool change system (optional) | ATC form | Disc/Chain | |
| Tool storage capacity | Pcs | 24/40 | |
| Maximum tool diameter (full tool/no adjacent tool) | mm | Φ112/Φ200 | |
| Maximum tool length | mm | 300 | |
| Maximum tool weight | kg | 18 | |
| Drawbolt | P50T-1(45°) | ||
| Tool change time (knife to knife) | sec | 2.5 | |
Machine accuracy | XYZ positioning accuracy | mm | 0.02/0.02/0.015mm |
| XYZ repeated positioning accuracy | mm | 0.015/0.015/0.01mm | |
| Machine weight (approx.) | T | 24/28/32 | |
