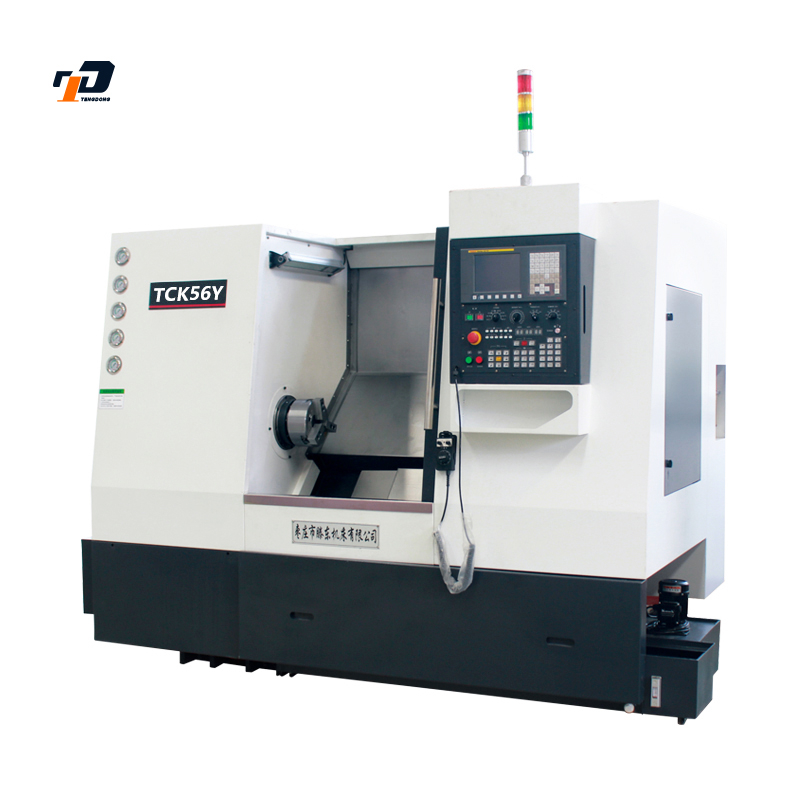

TCK56 inclined lathe milling composite machine tool

Model:
TCK56
Brand:
tengdong


SKU:
Availability:



Inquire PDF Export

Product Description

Technical parameters:

	project	unit	TCK56Y/500	TCK56/500	TCK56/1000	TCK56/1000p
Processing capability	Swinging on the bed	mm	φ560	φ560	φ560	φ560
	Maximum cutting length	mm	500	500	1000	1000
	Y-axis machining	mm	100
	Standard cutting diameter	mm	φ280	φ280	φ280	φ280
	Maximum cutting diameter	mm	φ400	P400	φ400	P400
	Maximum rotation diameter on the skateboard	mm	φ350	φ350	φ350	φ350
Spindle	Spindle end form and code		A2-6/A2-8	A2-6/A2-8	A2-6/A2-8	A2-6/A2-8
	Spindle hole diameter	mm	φ65/φ80	φ65/φ80	φ65/φ80	φ65/φ80
	The diameter of the spindle through the strip of material	mm	φ50/φ66	φ50/φ66	φ50/φ66	φ50/φ66
	Spindle speed range	r/min	504500/4000	504500/4000	504500/4000	504500/4000
	Main motor continuous output power/15 minutes	KW	11/15	11/15	11/15	11/15
	Maximum torque output of spindle	NM	235	235	235	235
	Chuck diameter	inch	8 '	8	8	8 '
Axial feed	Fast movement speed of x/z axis	m/min	30	30	30	30
	X/Z/Y axis travel	mm	210/560/100	210/560	210/1050	210/1050
	X/Z/Y axis motor power	KW	1.8	1.8	1.8	1.8
Tail rod	Overall travel at the end of the market	mm	450	450	900	710 Hard Track
	Taper of tail rod hole		MT5#	MT5#	MT5#	MT4#
	Top structure of the tail rod		Onsite center	Onsite center	Onsite center	Small spindle
Tool vector	Knife holder type		Servo eight knife	Servo eight knife	Servo eight knife	Servo eight knife
Tool vector	Tool size	mm	25x25/p40	25x25/p40	25x25/p40	25x25/p40
accuracy	Processing accuracy		IT6	IT6	IT6	IT6
	X/Z/Y axis positioning accuracy	mm	0.008	0.008	0.008	0.008
	X/Z/Y axis repeatability positioning accuracy	mm	0.004	0.004	0.004	0.004
other	weight	Kilogram	4000	4000	4800	4800
other	External dimensions	mm	2750x1860x1850	2750x1860x1850	3570x1860x1850	3570x1860x1850
