PARAMETER:

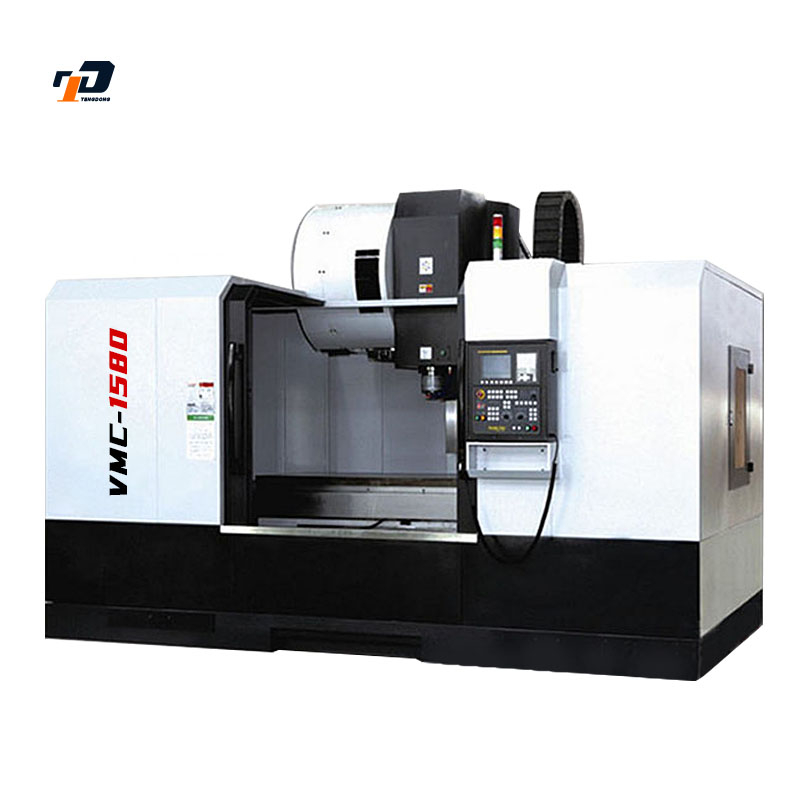

| Project | (Unit) | VMC1580 |
| X-axis travel | mm | 1500 |
| Y-axis travel | mm | 800 |
| Z-axis travel | mm | 700 |
| Table size | mm | 1700×800 |
| Maximum bearing capacity of table | kg | 1500 |
| T-slot (number of slots × width × spacing) | mm | 5×22×135 |
| Spindle taper hole | BT50 | |
| Spindle power | KW | 15/18.5 |
| Maximum spindle speed | rpm | 6000/8000 |
| Fast movement(X/Y) | mm/min | 15000 |
| Fast Movement (Z) | mm/min | 12000 |
| Cutting feed | mm/min | 1-5000 |
| Feed motor | NM | 25/32/25 |
| Distance from spindle nose to work surface | mm | 170-800 |
| Distance from spindle center to column guide rail surface | mm | 810 |
| Maximum tool diameter (adjacent/empty tool) | mm | Φ112/中200 |
| Maximum tool length | mm | 300 |
| Maximum tool weight | kg | 18 |
| Positioning accuracy | mm | ±0.01 |
| Repeated positioning accuracy | mm | ±0.0075 |
| Machine weight | kg | 13000 |
| Overall dimension | mm | 4300×3200×3100 |
