技术参数：

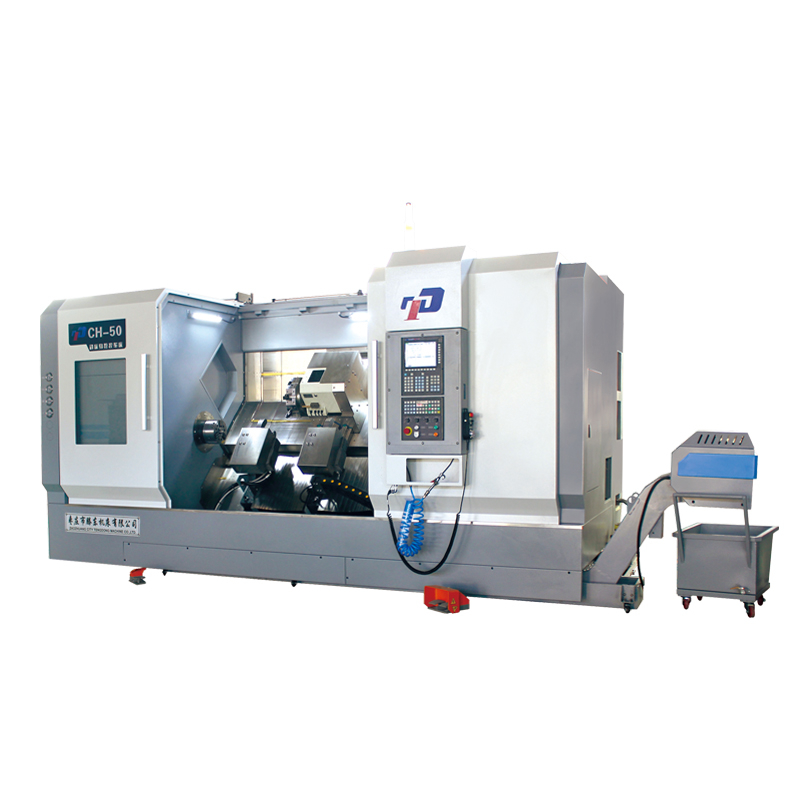

| Unit | CH50 | |
Maximum turning diameter of bed | mm | Φ500 |
Maximum tuming diameter on the plate | mm | Φ220 |
Bed guide form | mm | 45 Degree Overall Inclined Bed Body |
Maximum working length | mm | 2000 |
Spindle end type | type | A2-6 |
Outer diameter tool size | mm | 20 |
Tool change time | sec | 0.45~1.8 |
Clamping range of hydraulic center frame | mm | 15-105 |
Center frame movement range | mm | 1400 |
Tailstock travel distance | mm | 500 |
Tail seat mandrel movement mode | type | Hydraulic Pressure |
Tailstock spindle travel | mm | 100 |
Tailstock spindle diameter | mm | Φ65 |
Tailstock spindle taper | MT | MT4 |
Number of tools | 8 Workstation Turret | |
Spindle speed range | rpm | 50~3500 Stepless Speed Regulation |
Maximum fast moving speed | m/min | Z:18 X:18; |
Cutting feed | m/min | 0.001-5 |
Positioning accuracy | mm | X:0.01Z:0.015 |
Repeated positioning accuracy | mm | X:0.007Z:0.008 |
Minimum setting unit | mm | X:0.001(Diameter)Z:0.001 |
| Chain-type chip conveyor, wide 980TDi system | ||
