PARAMETER:

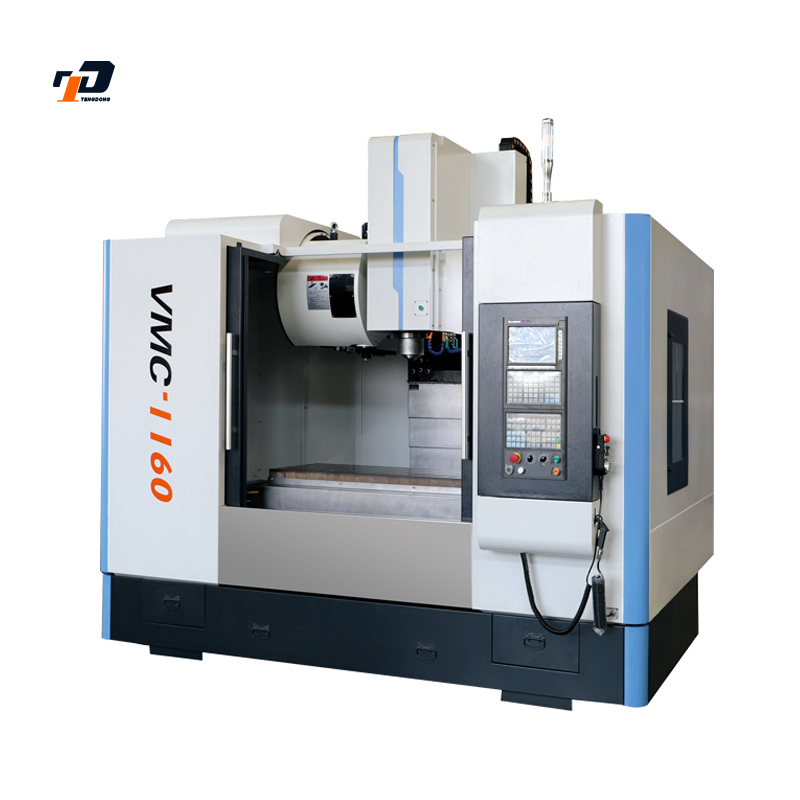

| Project | (Unit) | VMC1160 |
| X-axis travel | mm | 1100 |
| Y-axis travel | mm | 600 |
| Z-axis travel | mm | 600 |
| Table size | mm | 1200×600 |
| Maximum bearing capacity of table | kg | 1000 |
| T-slot (number of slots × width × spacing) | mm | 5×18×125 |
| Spindle taper hole | BT40 | |
| Spindle power | KW | 11/15 |
| Maximum spindle speed | rpm | 8000 |
| Fast movement(X/Y) | mm/min | 36/36/24 |
| Fast Movement (Z) | mm/min | 18000 |
| Cutting feed | mm/min | 1-8000 |
| Feed motor | NM | 20/20/20 |
| Distance from spindle nose to work surface | mm | 140-740 |
| Distance from spindle center to column guide rail surface | mm | 650 |
| Maximum tool diameter (adjacent/empty tool) | mm | Φ78/中120 |
| Maximum tool length | mm | 300 |
| Maximum tool weight | kg | 8 |
| Positioning accuracy | mm | ±0.0075 |
| Repeated positioning accuracy | mm | ±0.005 |
| Machine weight | kg | 7000 |
| Overall dimension | mm | 3400×2480×2960 |
