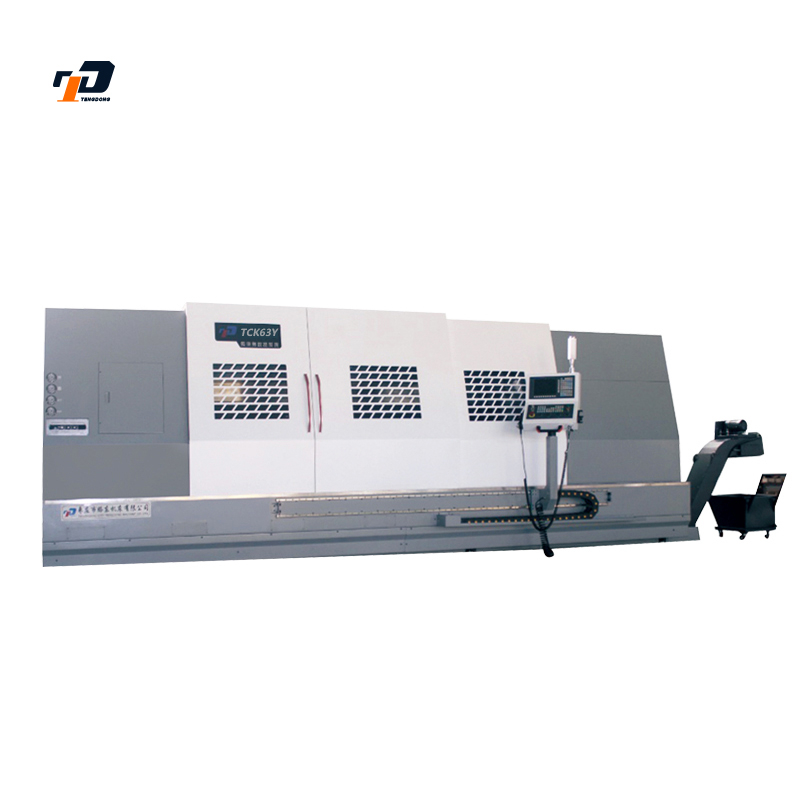

TCK63 turning and milling composite machine tool

Product Description

Technical parameters:

	project	unit	TCK63Y	TCK63/500	TCK63/1000	TCK63/1500
Processing capability	Swinging on the bed	mm	φ720	φ720	φ720	φ720
	Maximum cutting length	mm	1000	500	1000	1500
	Y-axis machining	mm	100
	Standard cutting diameter	mm	φ500	φ500	φ500	φ500
	Maximum cutting diameter	mm	φ630	φ630	φ630	φ630
	Maximum rotation diameter on the skateboard	mm	φ500	φ500	φ500	φ500
Spindle	Spindle end form and code		A2-8/A2-11	A2-8/A2-11	A2-8/A2-11	A2-8/A2-11
	Spindle hole diameter	mm	φ80/φ104	φ80/φ104	φ80/φ104	φ80/φ104
	The diameter of the spindle through the strip of material	mm	φ66/φ85	φ66/φ85	φ66/φ85	φ66/φ85
	Spindle speed range	r/min	503000	503000	503000	503000
	Main motor continuous output power/15 minutes	KW	15/18.5	15/18.5	15/18.5	15/18.5
	Maximum torque output of spindle	NM	420	420	420	420
	Chuck diameter	inch	10 '	10	10	10
Axial feed	Fast movement speed of x/z axis	m/min	30	30	30	30
	X/Z/Y axis travel	mm	315/1070/100	315/570	315/1070	315/1570
	X/Z/Y axis motor power	KW	3	3	3	3
Tail rod	Overall travel at the end of the market	mm	850	450	850	1200
	Taper of tail rod hole		MT5#	MT5#	MT5#	MT5#
	Top structure of the tail rod		Small spindle	Onsite center	Small spindle	Small spindle
Tool vector	Knife holder type		Servo 12 knives holder
	Tool size	mm	25x25/p40	25x25/p40	25x25/p40	25x25/p40
	Processing accuracy		IT6	IT6	IT6	IT6
accuracy	X/Z/Y axis positioning accuracy	mm	0.01/0.012	0.01/0.012	0.01/0.012	0.01/0.012
accuracy	X/Z/Y axis repeatability positioning accuracy	mm	0.005/0.007	0.005/0.007	0.005/0.007	0.005/0.007
other	weight	Kilogram	7500	6000	7500	9500
other	External dimensions	mm	4550x2270x2300	3560x2270x2100	4550x2270x2100	4700x2270x2200
