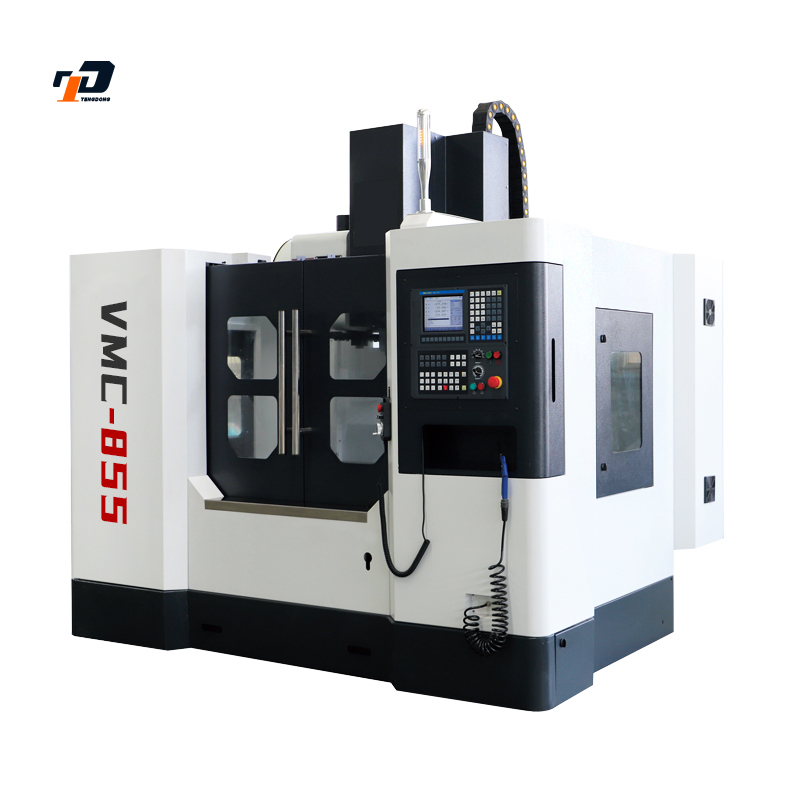

| model | unit | VMC855 |
| Workbench size | mm | 1000*550 |
| Left and left trip | mm | 850 |
| Front and rear itinerary | mm | 550 |
| Up and down trip | mm | 550 |
| Distance from the center of the spindle to the column guide rail | mm | 590 |
|
| Distance from the spindle end surface to the work surface | mm | 130-660 |
|
| Workbench T-slot |
| 5-18*90 |
| Spindle tool holder | mm | BT40 |
| Spindle speed | r/min | 8000(Optional:10000) |
| Spindle motor power | kW | 7.5 |
| XYZ axis servo motor | NM | 15/15/18 |
| XYZ motor connection method |
| Direct connection direct |
| XYZ axis guide rail method |
| 3-axis rail |
| 3axis linear guide rail |
| Workbench large load | kg | 600 |
| Tool magazine capacity |
| Bare hat 16 Armless type |
| (optional: disc 24 arm type) |
| Large tool weight | kg | 8 |
| Large tool length | mm | 250/350 |
| Large tool diameter | mm | 100 (Adjacent knife)/150 (Empty knife Apart) |
| XYZ fast moving speed | m/min | 24/24/20 |
| Cutting feed speed | m/min | 10 |
| XYZ positioning accuracy | mm | ±0.0075 |
| XYZ repeat positioning accuracy | mm | ±0.005 |
| Machine size | mm | 2900*2400*2750 |
| Machine tool weight | kg | 5200 |
