PARAMETER:

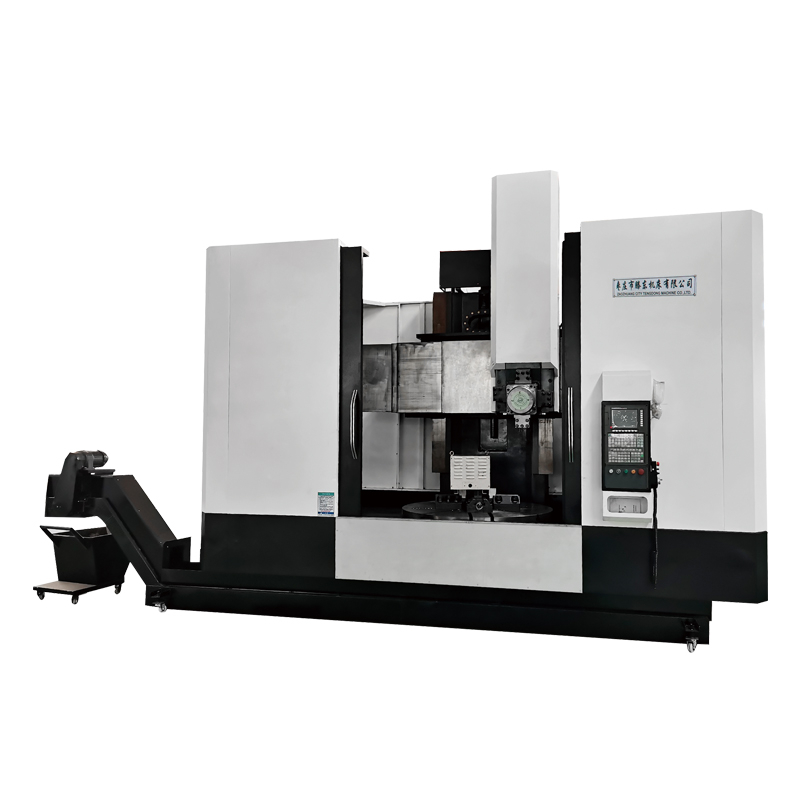

| Project | TLC1250 | |
| Maximum turning diameter | 1250 | |
| Maximum cutting length | 750 | |
| Maximum cutting diameter | Φ1250 | |
| Main spindle form and code | A2-11 | |
| Range of spindle speed | 80-1250 | |
| Spindle speed series | Stepless | |
| Main shaft transmission ratio | 1:2(3) | |
| Main motor output power | 30/37 | |
| Rated torque of main motor | 382 | |
| Chuck diameter/form | 1000/K3L | |
| X-axis servo motor | 4.7Kw-30Nm | |
| Z-axis servo motor | 4.7Kw-30Nm | |
| Knife holder form | Power Knife Tower | Twelve workstations |
| Structural form of guide rail | Roller track | Z axis 65X axis 55 |
| Z-axis ball screw pair | 1R6308 | |
| X-axis ball screw pair | 1R5008 | |
| X-axis fast movement speed | Track | 15 |
| Z-axis fast movement speed | Track | 15 |
| X-axis travel | 700 | |
| Z-axis travel | 800 | |
| Electrical capacity | 50 | |
| Machine weight | 12.5 | |
| External dimensions | 2650×2650×3400 | |
